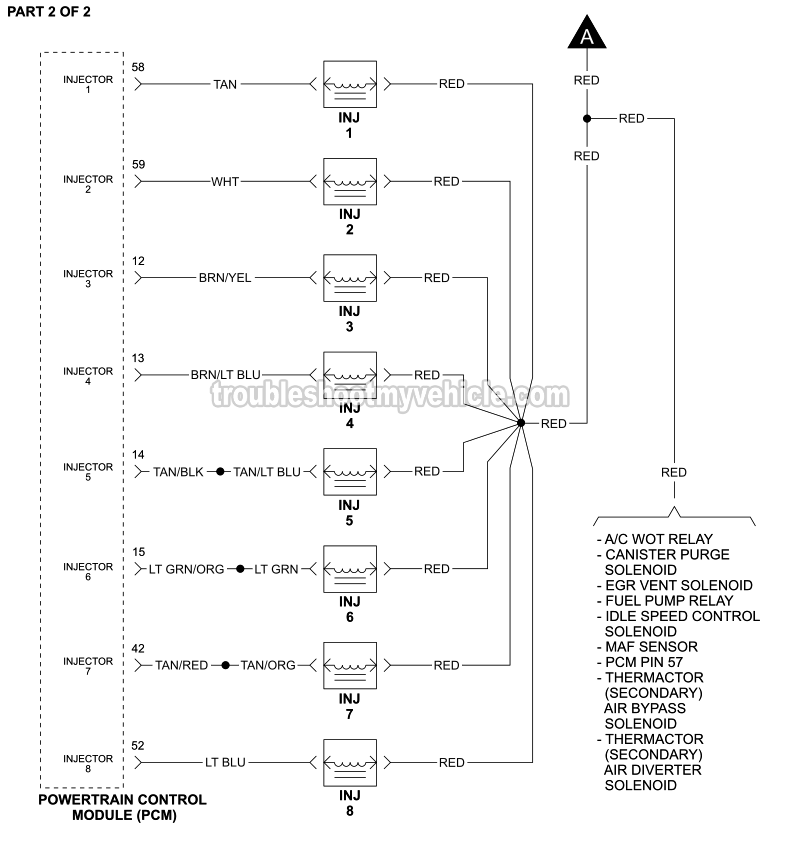

Fuel Injector Circuit Wiring Diagram (1991-1992 5.0L V8 Ford Mustang)

APPLIES TO: This fuel injector circuit wiring diagram applies to the following vehicles:

• 5.0L V8 Ford Mustang: 1991, 1992.

NOTE: This wiring diagrams includes the following component circuits:

• Fuel Injectors.
• EEC Power Relay (PCM Power Relay).

Fuel Injector Tests: The following tutorial will help you troubleshoot a bad or clogged fuel injector:

• How To Test The Fuel Injectors (Ford 5.0L And 5.8L V8 Engine).
