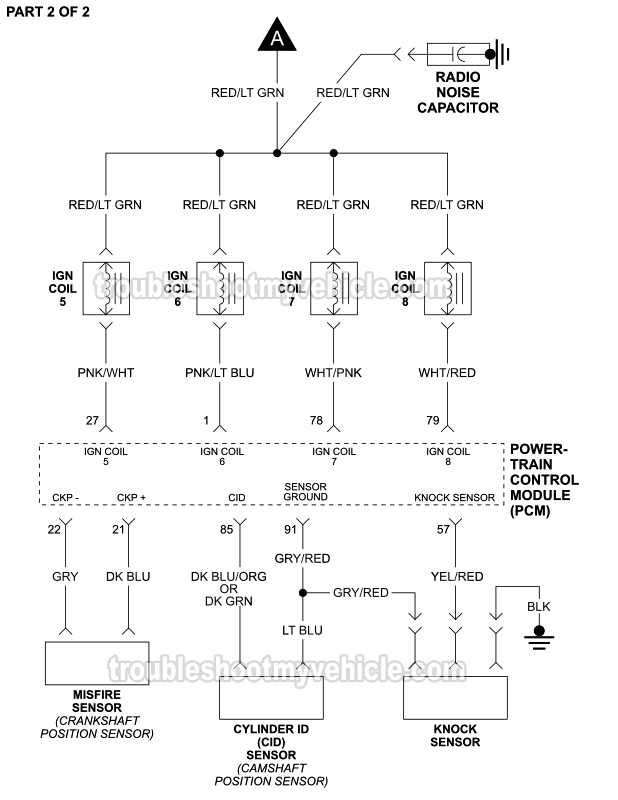

APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:
- 5.4L V8 Ford E150: 1997, 1998, 1999.
- 5.4L V8 Ford E250: 1997, 1998, 1999.
- 5.4L V8 Ford E350: 1997, 1998, 1999.
NOTE: This wiring diagrams includes the following ignition system components:
- Ignition coils.
- Crankshaft position (CKP) sensor.
- Camshaft position (CMP) sensor.
- Knock sensor
You can find the ignition coil pack circuit diagram for the 4.2L V6 and 4.6L V8 E150, E250 here:
- Ignition System Wiring Diagram (1997-1999 4.2L V6 Ford E150, E250)
- Ignition System Wiring Diagram (1997-1999 4.6L V8 Ford E150, E250)
F-SERIES PICKUPS: You can find the ignition system wiring diagram for the 1997-1999 5.4L F150, F250, and F350 pickups here:
- Ignition System Circuit Wiring Diagram (1997-1999 5.4L V8 Ford F150, F250, F350) (at: easyautodiagnostics.com)
