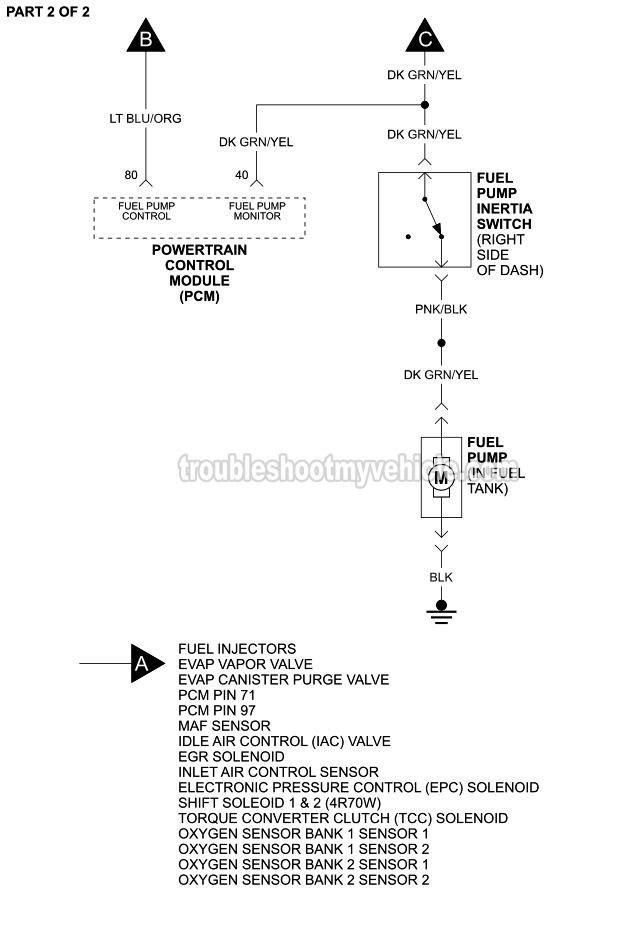

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:
- 4.2L V6 Ford E150: 1997, 1998, 1999.
- 4.2L V6 Ford E250: 1997, 1998, 1999.
NOTE: This wiring diagrams includes the following ignition system components:
- PCM Power Relay.
- Fuel Pump Relay.
- Fuel Pump Inertia Cut-Off Switch.
- Fuel Pump.
F-SERIES PICKUPS: The fuel pump circuit wiring diagram for the 1997-1999 4.2L V6 Ford F150/F250 pickups is available here:
- Fuel Pump Circuit Wiring Diagram (1997, 1998 4.2L V6 Ford F150, F250) (at: easyautodiagnostics.com)
- Fuel Pump Circuit Wiring Diagram (1999 4.2L V6 Ford F150, F250) (at: easyautodiagnostics.com)
