Below is the EEC-IV PCM 60-pin connector pinout for the 1994-1995 3.8L V6 Ford Taurus/Mercury Sable models.

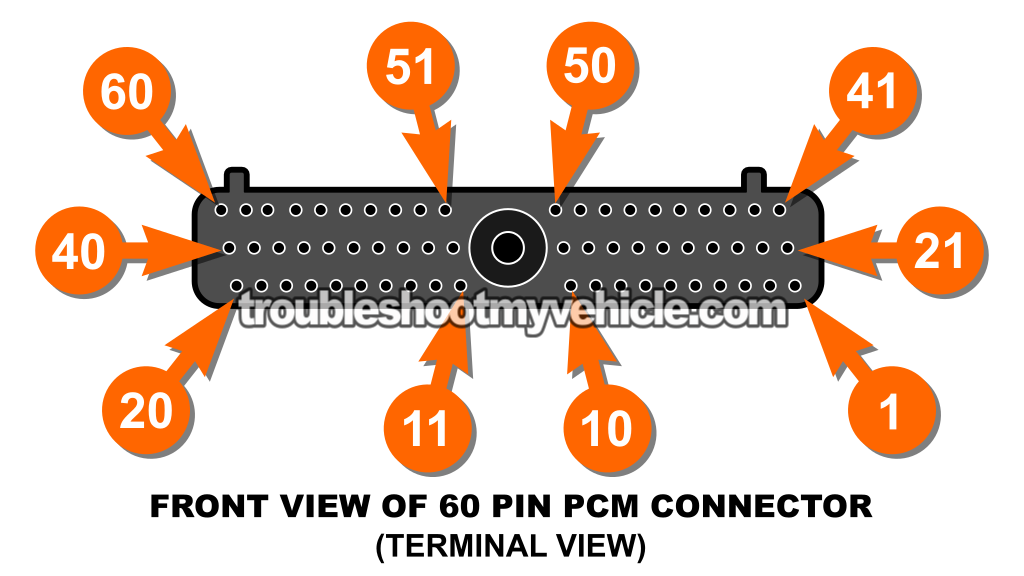

The 60-pin connector has small, raised numbers on the wire side. Those numbers identify the circuit (wire) and will help you pinpoint the circuit you need to test.
APPLIES TO: The PCM connector pinout applies only to the following vehicles:
- 3.8L V6 Ford Taurus: 1994, 1995.
- 3.8L V6 Mercury Sable: 1994, 1995.
WIRE COLOR LEGEND/ID:
PCM LOCATION AND TESTING TIPS:
- EEC-IV PCM Location (1990-1995 3.8L V6 Ford Taurus, Mercury Sable).
- How To Safely Probe The PCM Connector -Without Damaging It (1990-1995 3.8L V6 Ford Taurus, Mercury Sable).
| 60 Pin PCM Connector Pinout | ||
|---|---|---|
| Pin | Wire Color | Description |
| 1 | YEL | Keep Alive Power (KAPWR) |
| 2 | RED/LT GRN | Brake On/Off (BOO) |
| 3 | DK GRN/WHT | Vehicle Speed Sensor (+) (VSS +) |
| 4 | WHT/PNK | Ignition Diagnostic Monitor (IDM) |
| 5 | GRY/BLK | Transmission Speed Sensor (TSS) |
| 6 | ORG/YEL | Vehicle Speed Sensor (–) (VSS –) |
| 7 | LT GRN/RED | Engine Coolant Temperature Sensor (ECT) |
| 8 | PNK/BLK | Fuel Pump Monitor (FPM) |
| 9 | TAN/LT BLU | Mass Air Flow Sensor Return (MAF RTN) |
| 10 | PNK/LT BLU | A/C Cycling Switch (ACCS) |
| 11 | GRY/YEL | Canister Purge Solenoid (CANP) |
| 12 | LT GRN/ORG | Injector #6 (INJ 6) |
| 13 | TAN/ORG | Low Fan Control (LFC) |
| 14 | – | NOT USED |
| 15 | TAN/BLK | Injector #5 (INJ 5) |
| 16 | GRY | Ignition Ground (IGN GND) |
| 17 | TAN/RED | Self-Test Output / Malfunction Indicator Light (STO/MIL) |
| 18 | TAN/ORG | Data Communications Link (+) (DATA +) |
| 19 | PNK/LT BLU | Data Communications Link (–) (DATA –) |
| 20 | BLK | Case Ground (CASE GND) |
| 21 | BRN/WHT | Idle Air Control Solenoid (IAC) |
| 22 | LT BLU/ORG | Fuel Pump (FP) |
| 23 | – | NOT USED |
| 24 | – | NOT USED |
| 25 | GRY | Intake Air Temperature Sensor (IAT) |
| 26 | BRN/WHT | Reference Voltage (VREF) |
| 27 | BRN/LT GRN | Pressure Feedback EGR Sensor (PFE) |
| 28 | YEL/LT GRN | Power Steering Pressure Switch (PSPS) |
| 29 | – | NOT USED |
| 30 | LT BLU/YEL | Manual Lever Position Sensor (MLPS) |
| 31 | LT GRN/PPL | High Fan Control (HFC) |
| 32 | – | NOT USED |
| 33 | BRN/PNK | EGR Vacuum Regulator Solenoid (EVR) |
| 34 | LT BLU/PNK | Data Output Line (DOL) |
| 35 | BRN/LT BLU | Injector #4 (INJ 4) |
| 36 | YEL/LT GRN | Spark Output (SPOUT) |
| 37 | RED | Vehicle Power (VPWR) |
| 38 | WHT/YEL | Electronic Pressure Control (EPC) |
| 39 | BRN/YEL | Injector #3 (INJ 3) |
| 40 | BLK/LT GRN | Power Ground (PWR GND) |
| 41 | – | NOT USED |
| 42 | TAN/LT GRN | AC Pressure Switch (ACPSW) |
| 43 | RED/BLK | Heated Exhaust Gas Oxygen Sensor – Front (HEGO–F) |
| 44 | GRY/LT BLU | Heated Exhaust Gas Oxygen Sensor – Rear (HEGO–R) |
| 45 | – | NOT USED |
| 46 | GRY/RED | Signal Return (SIG RTN) |
| 47 | GRY/WHT | Throttle Position Sensor (TP) |
| 48 | BRN | Self-Test Input (STI) |
| 49 | ORG/BLK | Transmission Oil Temperature Sensor (TOT) |
| 50 | LT BLU/RED | Mass Air Flow Sensor (MAF) |
| 51 | ORG/YEL | Shift Solenoid #1 (SS–1) |
| 52 | PPL/ORG | Shift Solenoid #2 (SS–2) |
| 53 | TAN/WHT | Lock-Up Solenoid (LUS) |
| 54 | PNK/YEL | Wide Open Throttle A/C Cut Off (WAC) |
| 55 | WHT/RED | Shift Solenoid #3 (SS–3) |
| 56 | GRY/ORG | Profile Ignition Pick-Up (PIP) |
| 57 | RED | Vehicle Power (VPWR) |
| 58 | TAN | Injector #1 (INJ 1) |
| 59 | WHT | Injector #2 (INJ 2) |
| 60 | BLK/LT GRN | Power Ground (PWR GND) |
WIRE COLOR LEGEND: You can find the wire color legend here: Connector Wire Color Legend (1990-1995 3.8L V6 Ford Taurus, Mercury Sable).
