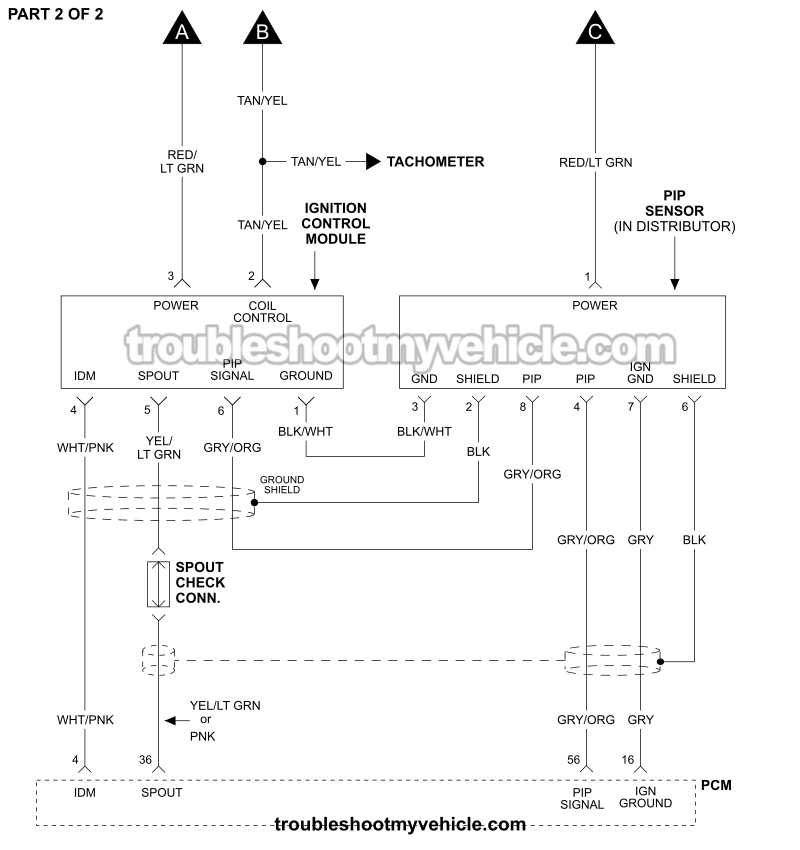

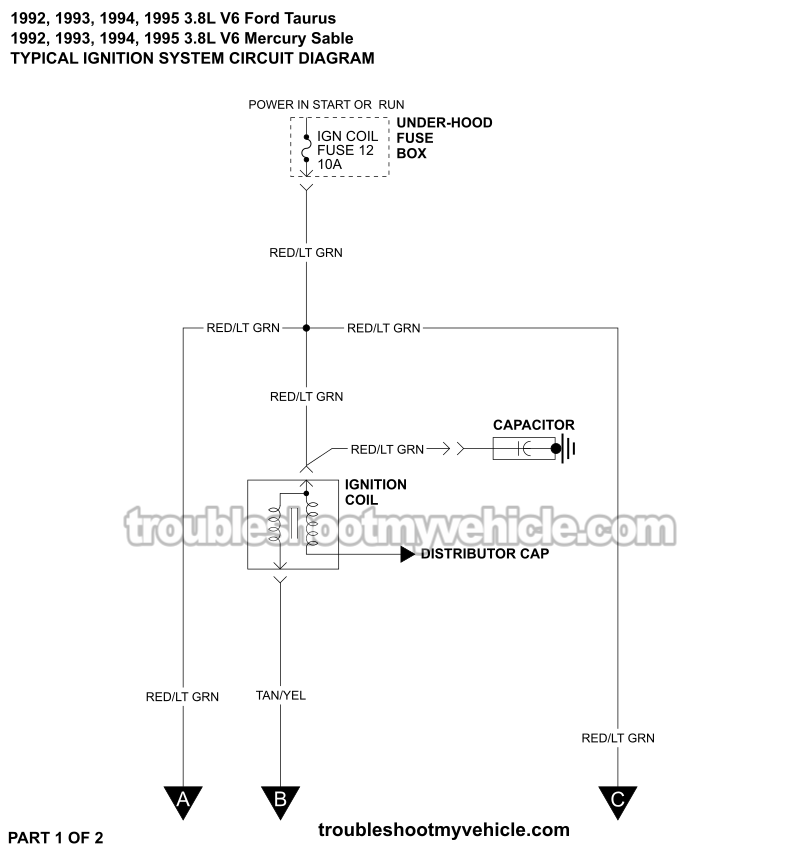

Ignition System Wiring Diagram (1992-1995 3.8L V6 Ford Taurus, Mercury Sable)

This ignition system wiring diagram applies to:

• 3.8L V6 Ford Taurus: 1992, 1993, 1994, 1995.
• 3.8L V6 Mercury Sable: 1992, 1993, 1994, 1995.

This ignition system circuit wiring diagram includes the following circuits:

• Ignition Coil.
• Ignition Control Module (ICM).
• Profile Ignition Pickup (PIP) Sensor.

IGNITION SYSTEM DIAGNOSTICS TESTS:

• Ignition Coil And Basic Ignition System Tests (1990-1995 3.8L V6 Ford Taurus, Mercury Sable).
• How To Test The Ignition Control Module (1990-1995 3.8L V6 Ford Taurus, Mercury Sable).
• How To Test The PIP Sensor (1990-1995 3.8L V6 Ford Taurus, Mercury Sable).

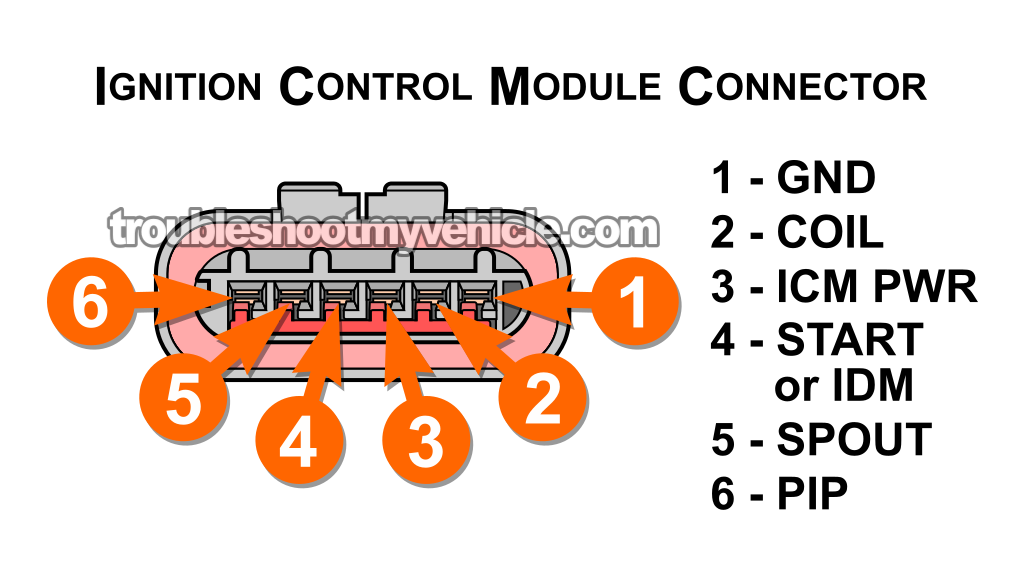

ICM Connector Pinout

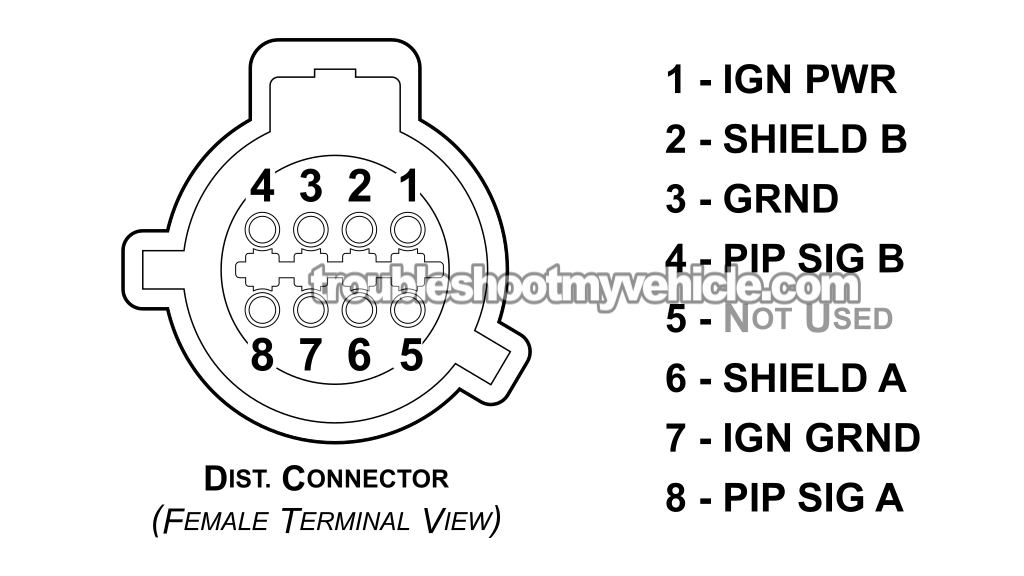

PIP Sensor Connector Pinout

Ignition System Wiring Diagrams

• Ignition System Wiring Diagram (1990 3.8L V6 Ford Taurus, Mercury Sable).
• Ignition System Wiring Diagram (1991 3.8L V6 Ford Taurus, Mercury Sable).
