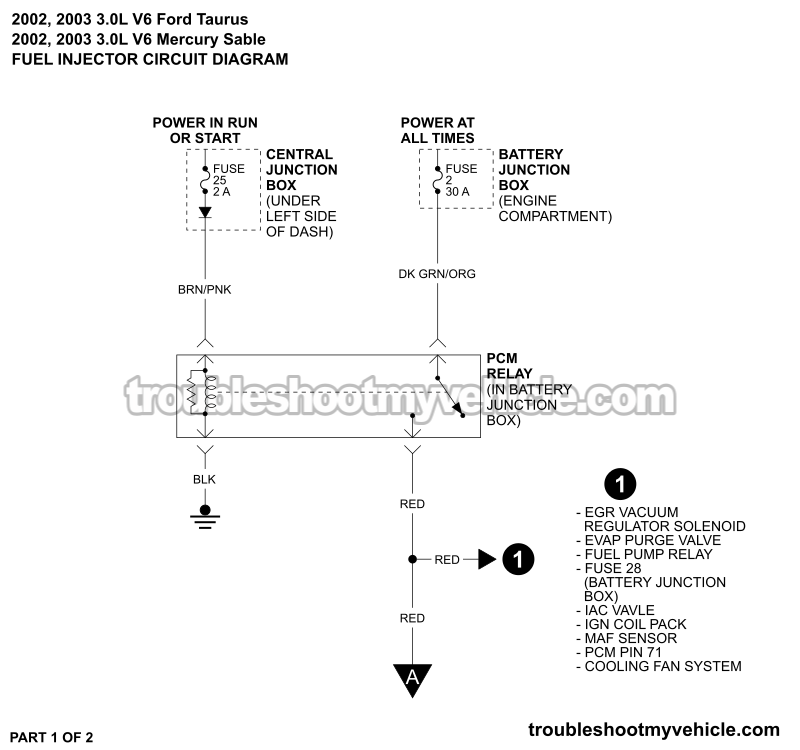

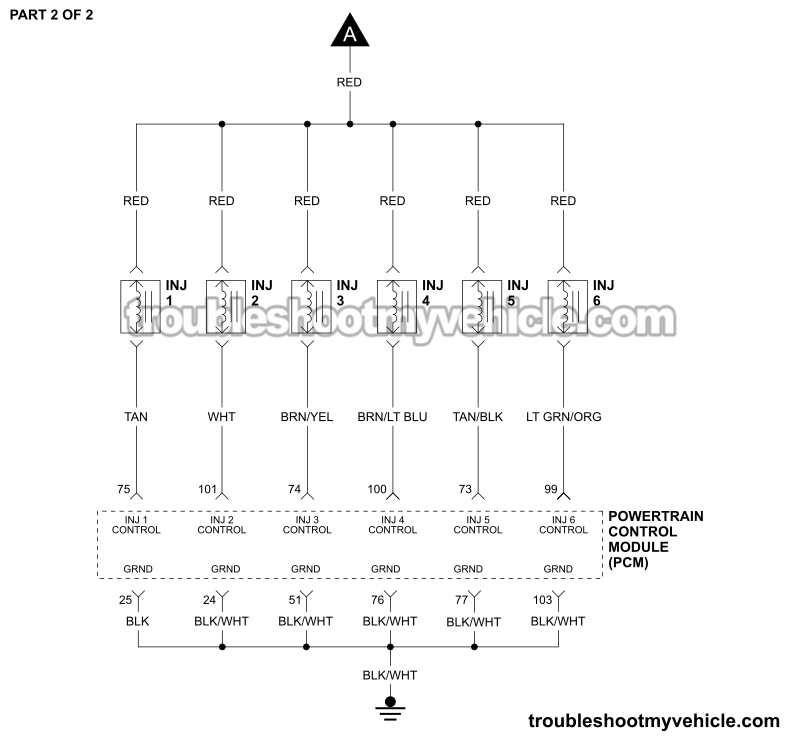

Fuel Injector Circuit Wiring Diagram (2002-2003 3.0L V6 Ford Taurus, Mercury Sable)

APPLIES TO: This fuel injector circuit wiring diagram applies to the following vehicles:

• 3.0L V6 (OHV) Ford Taurus: 2002, 2003.
• 3.0L V6 (OHV) Mercury Sable: 2002, 2003.

The wiring diagram includes the following circuits:

• PCM Power Relay.
• Fuel Injectors.

WIRE COLOR LEGEND:

• Connector Wire Color Legend (1990-2007 3.0L V6 Ford Taurus, Mercury Sable).

FUEL INJECTOR DIAGNOSTIC TESTS:

• How To Test The Fuel Injectors (2000-2007 3.0L V6 Ford Taurus, Mercury Sable).
