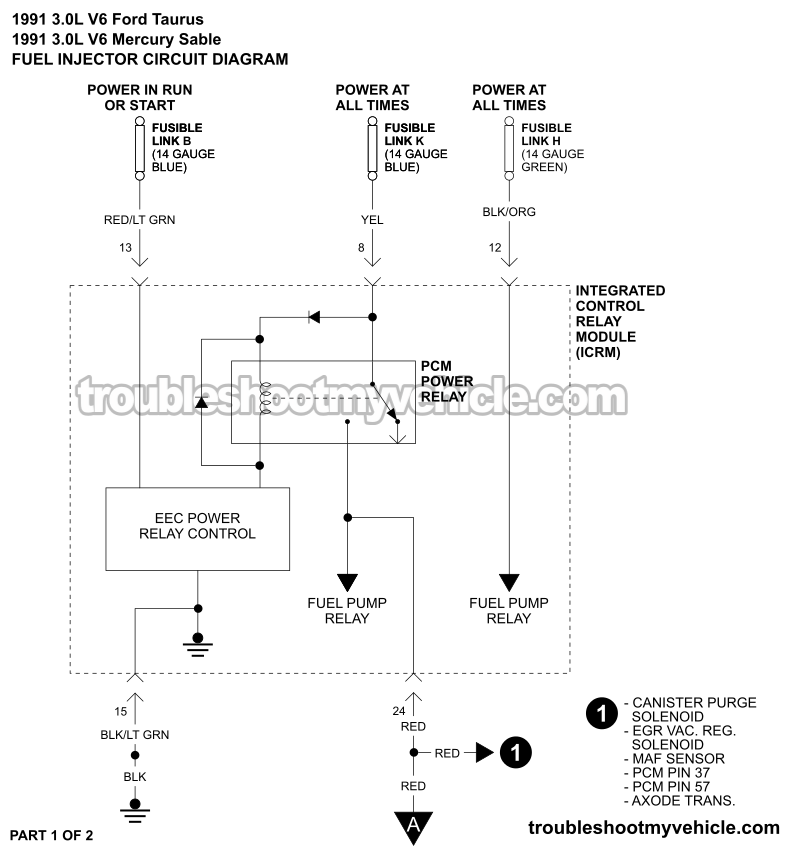

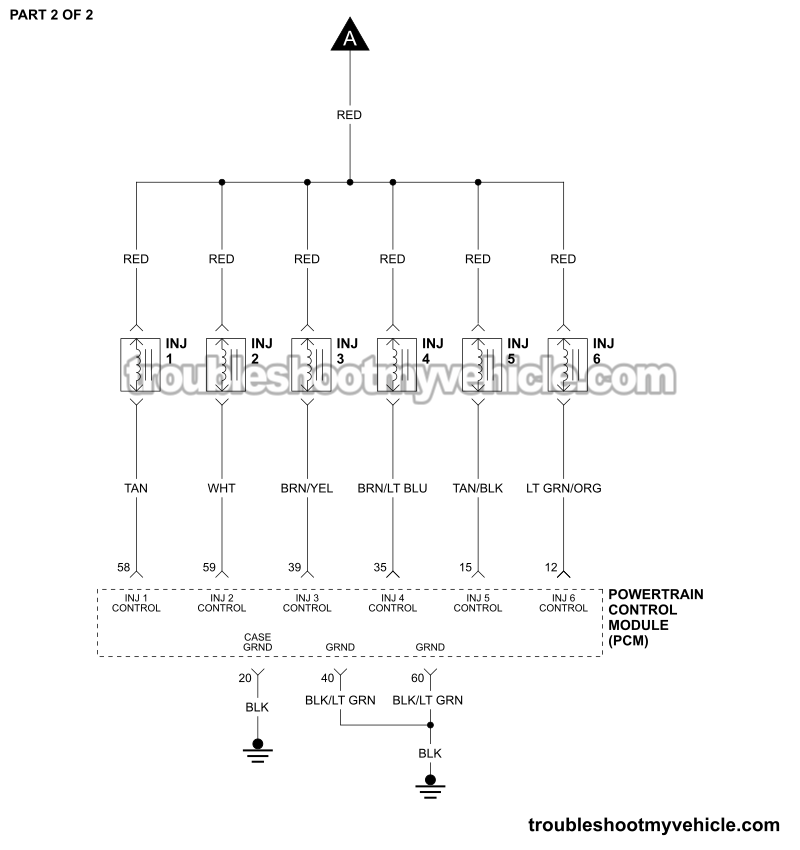

Fuel Injector Circuit Wiring Diagram (1991 3.0L V6 Ford Taurus, Mercury Sable)

APPLIES TO: This fuel injector circuit wiring diagram applies to the following vehicles:

• 3.0L V6 (OHV) Ford Taurus: 1991.
• 3.0L V6 (OHV) Mercury Sable: 1991.

The wiring diagram includes the following circuits:

• PCM Power Relay: Found inside the Integrated Control Relay Module assembly.
• Fuel Injectors.

FUEL INJECTOR DIAGNOSTIC TESTS:

• How To Test The Fuel Injectors (1990-1995 3.0L V6 Ford Taurus).
