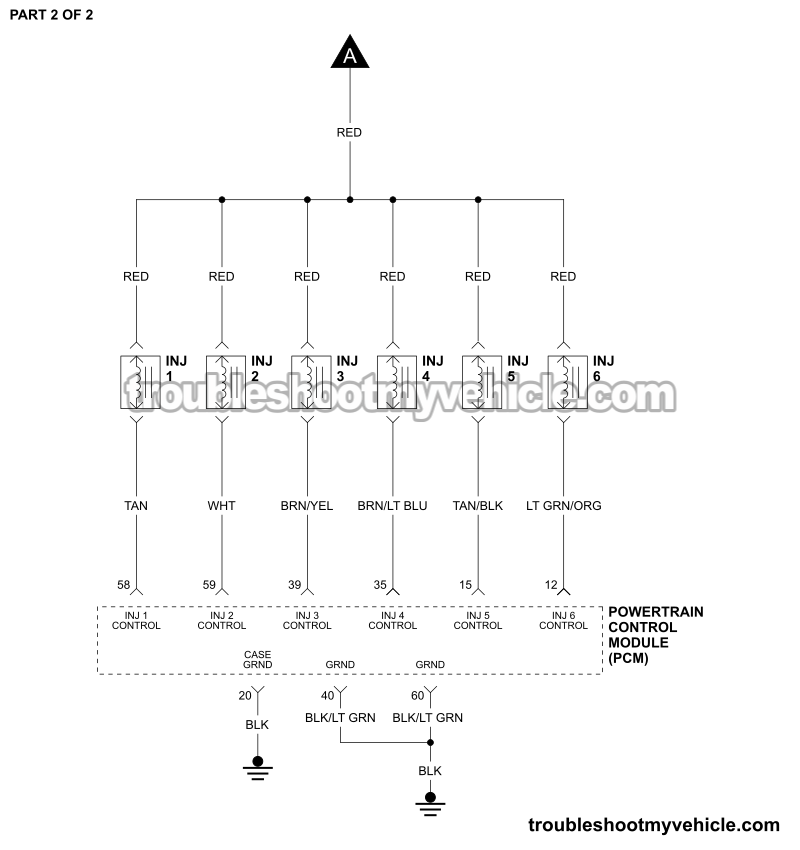

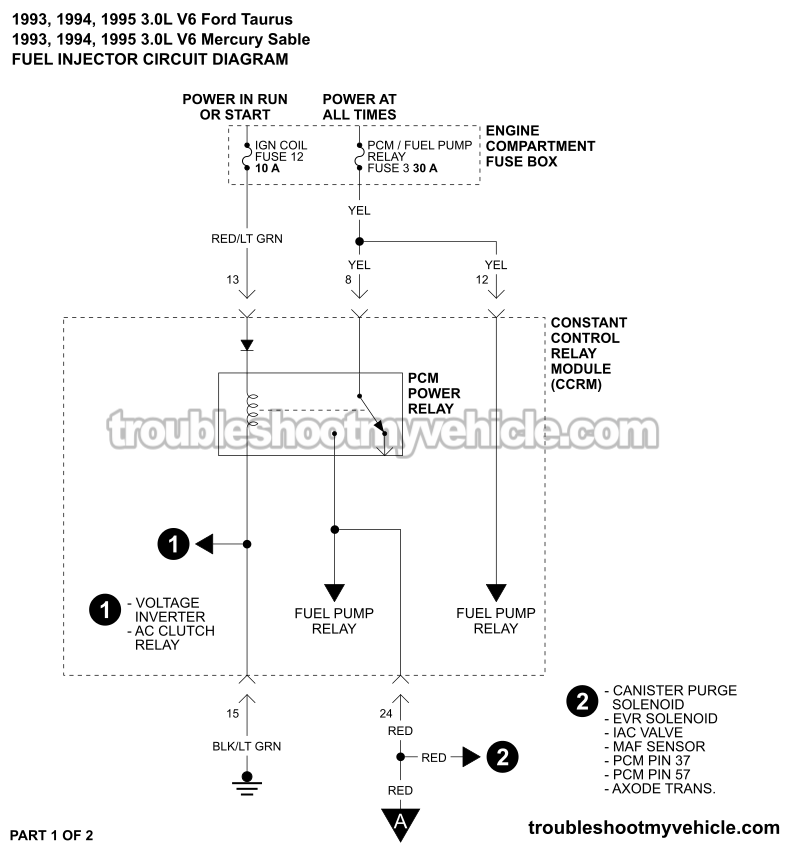

Fuel Injector Circuit Wiring Diagram (1993-1995 3.0L V6 Ford Taurus, Mercury Sable)

APPLIES TO: This fuel injector circuit wiring diagram applies to the following vehicles:

• 3.0L V6 (OHV) Ford Taurus: 1993, 1994, 1995.
• 3.0L V6 (OHV) Mercury Sable: 1993, 1994, 1995.

The wiring diagram includes the following circuits:

• PCM Power Relay: Found inside the Constant Control Relay Module assembly.
• Fuel Injectors.

WIRE COLOR LEGEND:

• Connector Wire Color Legend (1990-2007 3.0L V6 Ford Taurus, Mercury Sable).

FUEL INJECTOR DIAGNOSTIC TESTS:

• How To Test The Fuel Injectors (1990-1995 3.0L V6 Ford Taurus).
