CKP Sensor Wiring Diagram (1996-2007 3.0L V6 Ford Taurus, Mercury Sable)

  • By: Abraham Torres-Arredondo
  • Created: 20 November 2025
  • Updated: 23 November 2025
  • Articl Id: 165

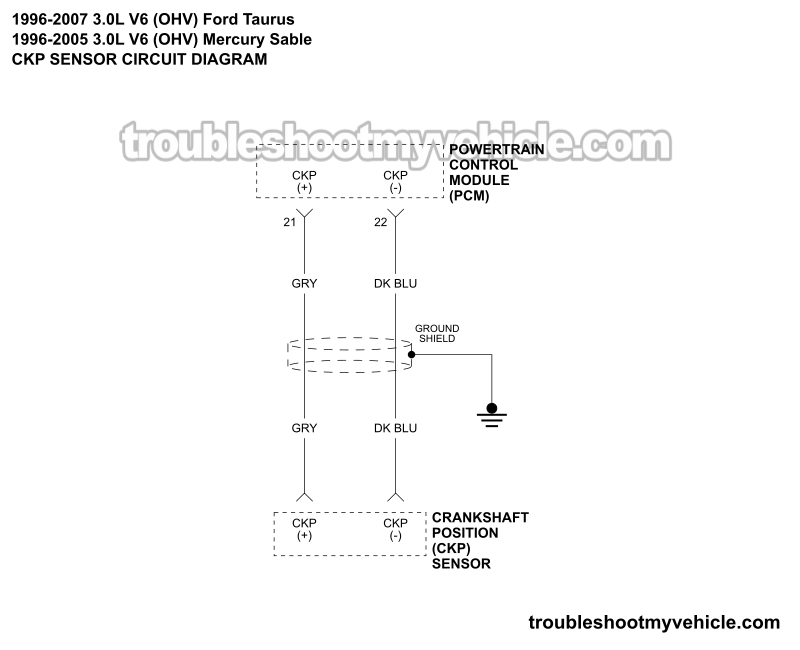

CKP Sensor Wiring Diagram (1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 3.0L V6 Ford Taurus, Mercury Sable)

APPLIES TO: This simplified CKP sensor circuit wiring diagram applies to the following vehicles:

  • 3.0L V6 (OHV) Ford Taurus: 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007.
  • 3.0L V6 (OHV) Mercury Sable: 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005.
