Ignition Coil Pack Wiring Diagram (2000-2001 3.0L V6 Ford Taurus, Mercury Sable)

  • By: Abraham Torres-Arredondo
  • Created: 23 November 2025
  • Updated: 23 November 2025
  • Articl Id: 168

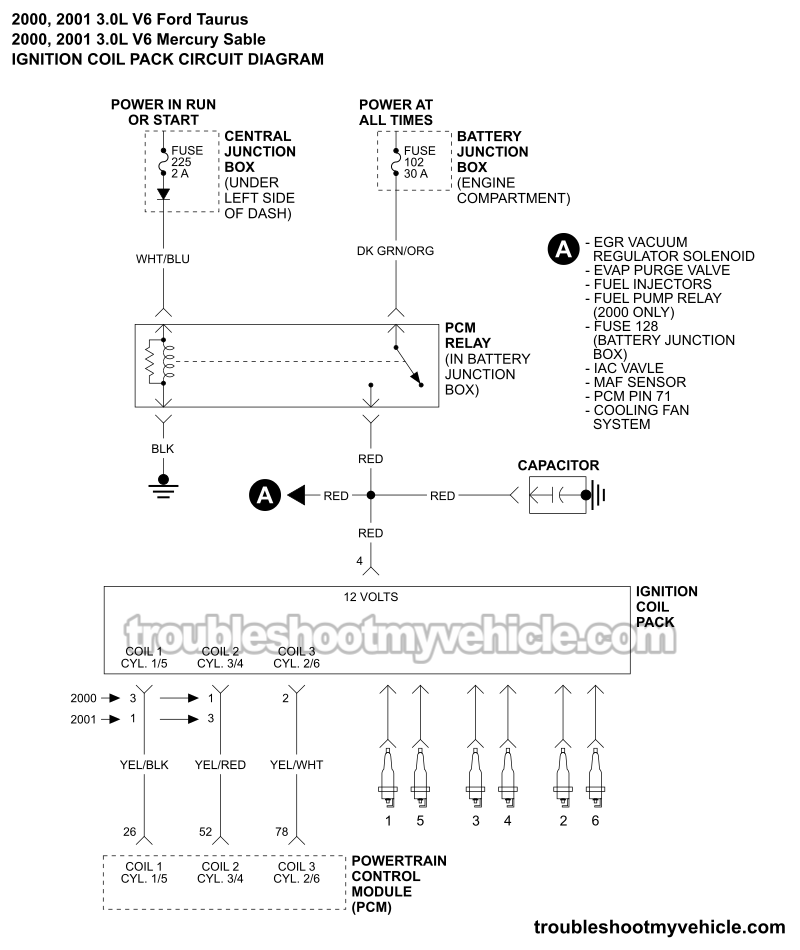

Ignition Coil Pack Wiring Diagram (2000, 2001 3.0L V6 Ford Taurus, Mercury Sable)

APPLIES TO: This simplified ignition coil pack wiring diagram applies to the following vehicles:

  • 3.0L V6 (OHV) Ford Taurus: 2000, 2001.
  • 3.0L V6 (OHV) Mercury Sable: 2000, 2001.

WIRE COLOR LEGEND: You can find the wire color legend here: Connector Wire Color Legend (1991-2007 3.0L V6 Ford Taurus, Mercury Sable).

IGNITION SYSTEM TESTS:

Ignition System Wiring Diagrams

COIL PACK IGNITION SYSTEM:

CKP SENSOR DIAGRAMS:

DISTRIBUTOR IGNITION SYSTEM:
