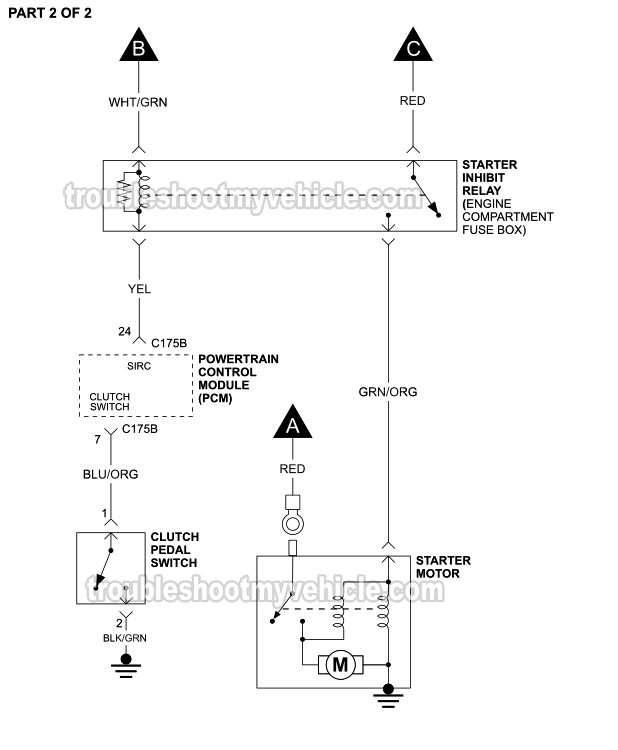

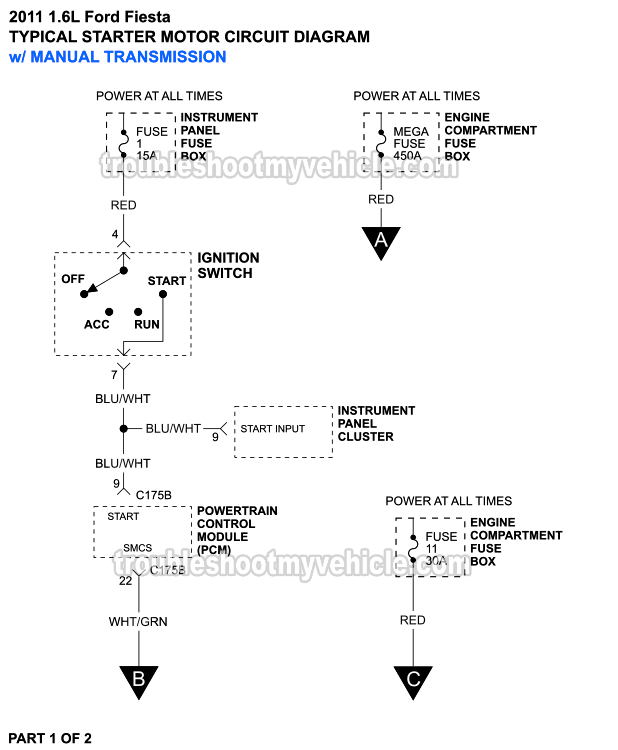

Starter Motor Circuit Wiring Diagram (2011 1.6L Ford Fiesta)

APPLIES TO: This circuit wiring diagram applies to the following vehicles:

• 1.6L Ford Fiesta: 2011.

NOTE: This wiring diagrams includes the following engine cooling fan circuit components:

• Starter Motor Inhibit Relay
• Starter Motor
• Clutch Pedal Switch

You can find the 2012-2013 1.6L Ford Fiesta starter motor circuit wiring diagram here:

• Starter Motor Circuit Wiring Diagram (2012, 2013 1.6L Ford Fiesta)
