Starter Motor Circuit Wiring Diagram (2011 1.6L Ford Fiesta)

  • By: Abraham Torres-Arredondo
  • Created: 30 April 2024
  • Updated: 02 May 2024
  • Articl Id: 1256
Page 1 of 2

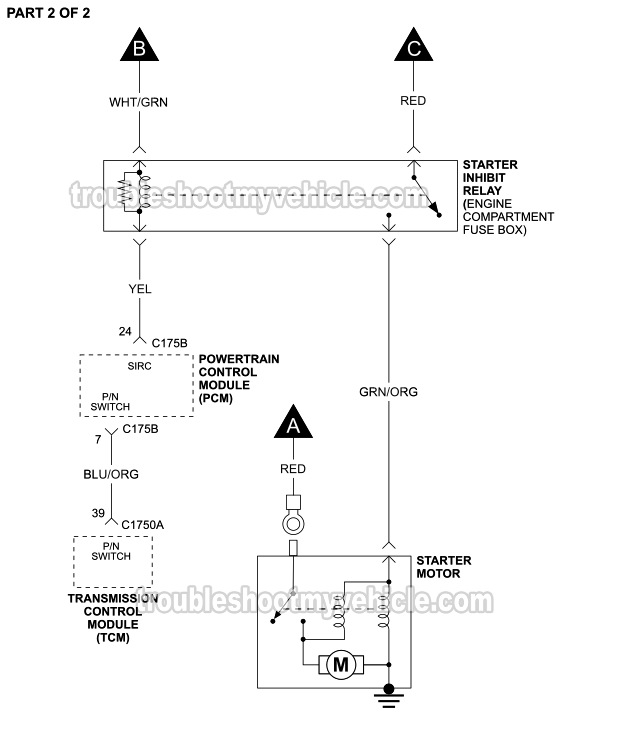

Starter Motor Circuit Wiring Diagram W/ Automatic Transmission (2011 1.6L Ford Fiesta) Starter Motor Circuit Wiring Diagram W/ Automatic Transmission (2011 1.6L Ford Fiesta)

APPLIES TO: This circuit wiring diagram applies to the following vehicles:

  • 1.6L Ford Fiesta: 2011.

NOTE: This wiring diagrams includes the following engine cooling fan circuit components:

  • Starter Motor Inhibit Relay
  • Starter Motor

You can find the 2012-2013 1.6L Ford Fiesta starter motor circuit wiring diagram here:
