Ignition System Wiring Diagram (2003 4.7L V8 Dodge Ram Pickup)

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:

• 4.7L V8 Dodge Ram 1500: 2003.

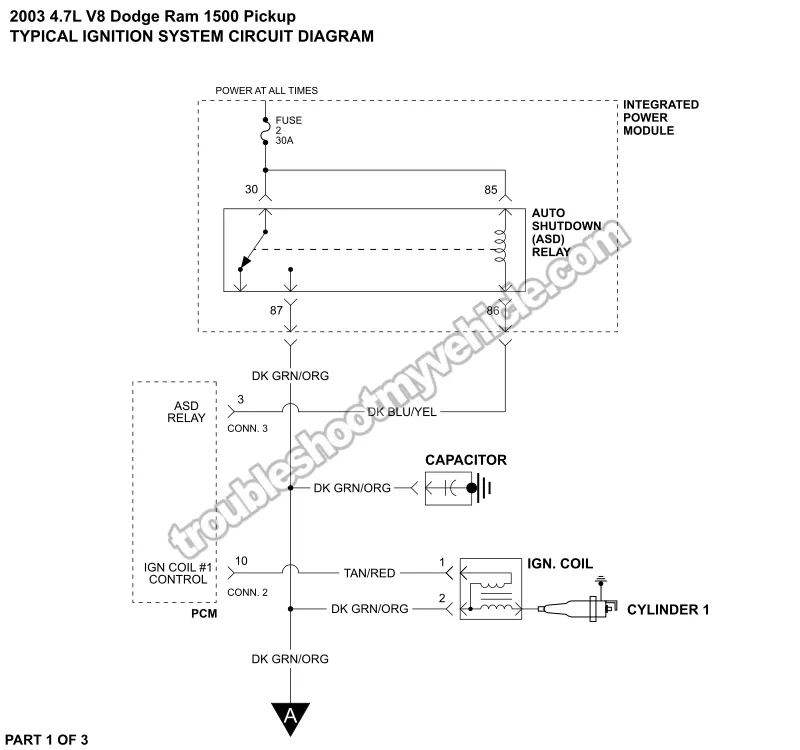

This circuit diagram includes the following circuits:

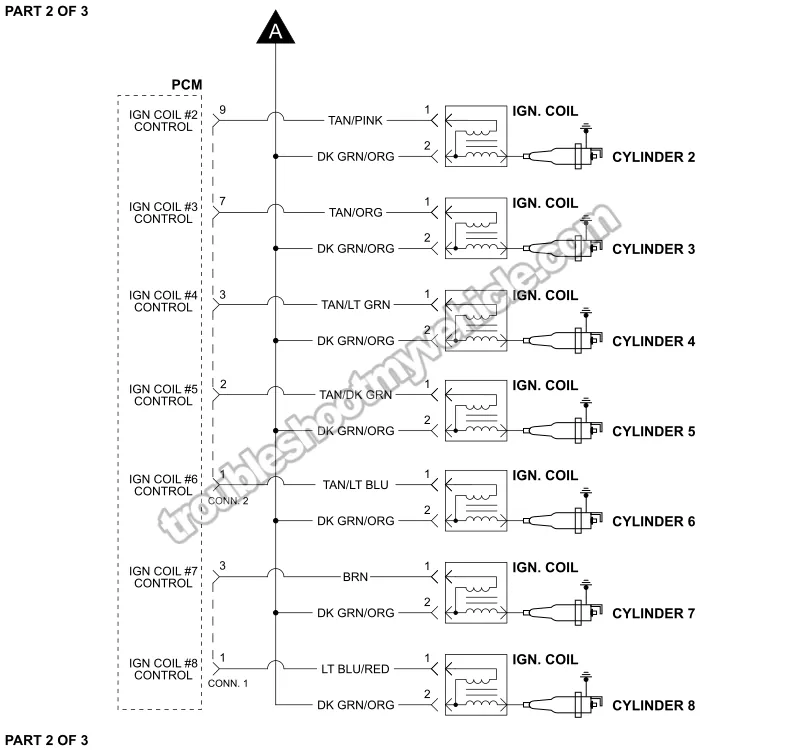

• Ignition coils.
• Camshaft position (CMP) sensor.

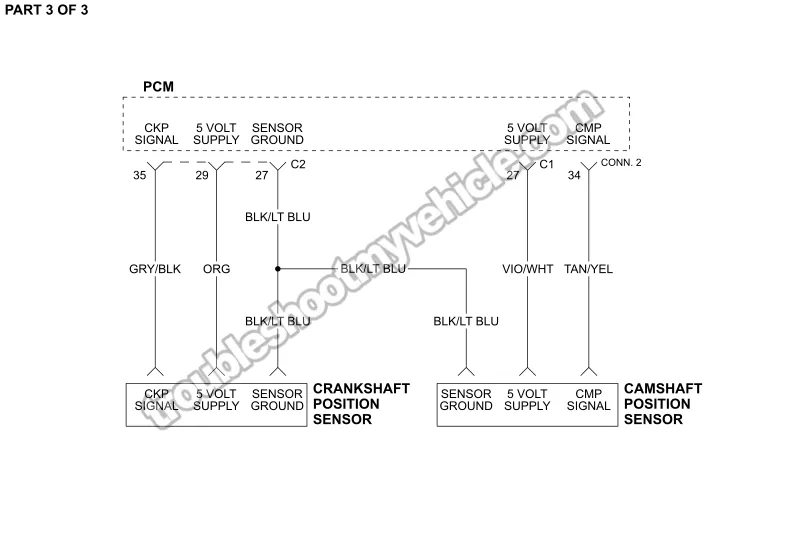

• Crankshaft position (CKP) sensor.

IGNITION SYSTEM TESTS:

• How To Test The CMP Sensor -P0340 (2002-2007 4.7L V8 Dodge Ram Pickup).
• How To Test The CKP Sensor -P0320, P0335, P0339 (2002-2010 4.7L V8 Dodge Ram Pickup).
• How To Test The COP Ignition Coils (Chrysler, Dodge, Jeep 4.7L).

Ignition System Wiring Diagrams

• Ignition System Wiring Diagram (2002 4.7L V8 Dodge Ram 15000 Pickup).
• Ignition System Wiring Diagram (2004-2006 4.7L V8 Dodge Ram 15000 Pickup).
• Ignition System Wiring Diagram (2007-2008 4.7L V8 Dodge Ram 15000 Pickup).
• Ignition System Wiring Diagram (2009-2010 4.7L V8 Dodge Ram 15000 Pickup).
