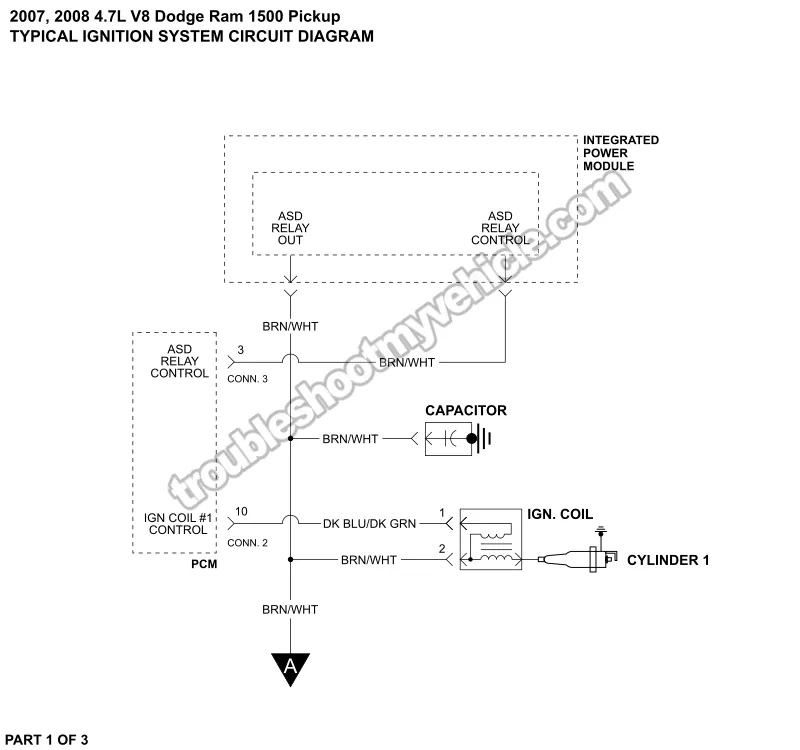

Ignition System Wiring Diagram (2007-2008 4.7L V8 Dodge Ram Pickup)

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:

• 4.7L V8 Dodge Ram 1500: 2007, 2008.

This circuit diagram includes the following circuits:

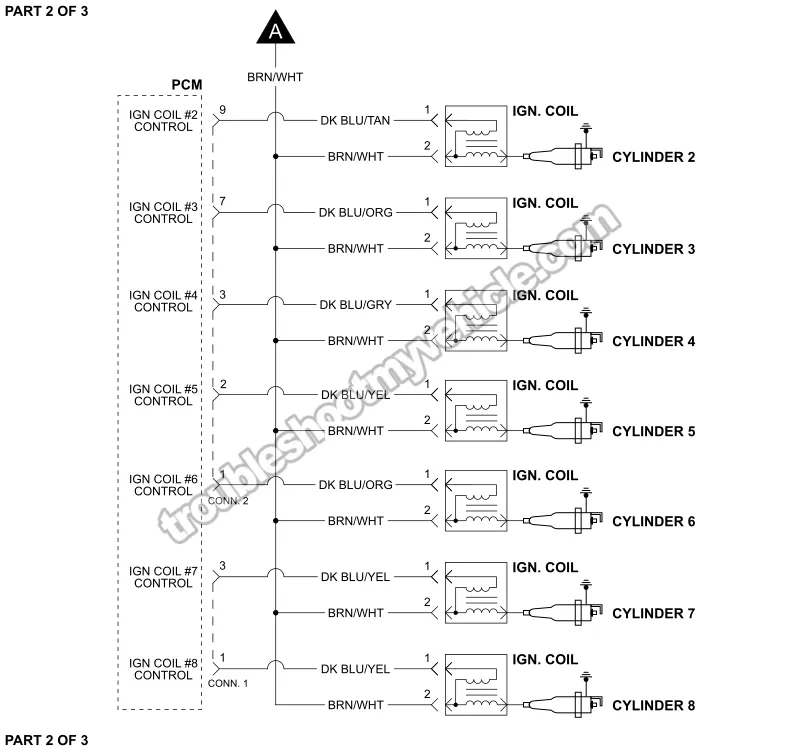

• Ignition coils.

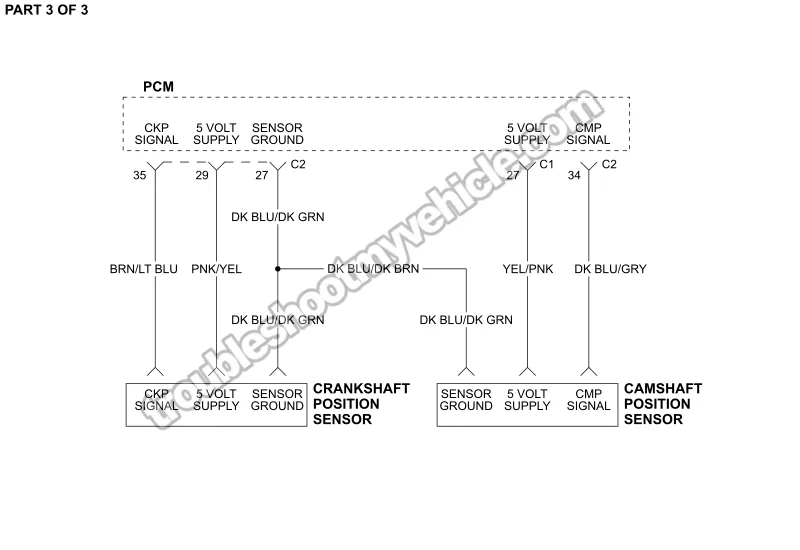

• Camshaft position (CMP) sensor.
• Crankshaft position (CKP) sensor.

IGNITION SYSTEM TESTS:

• How To Test The CMP Sensor -P0340 (2002-2007 4.7L V8 Dodge Ram Pickup).
• How To Test The CKP Sensor -P0320, P0335, P0339 (2002-2010 4.7L V8 Dodge Ram Pickup).
• How To Test The COP Ignition Coils (Chrysler, Dodge, Jeep 4.7L).
