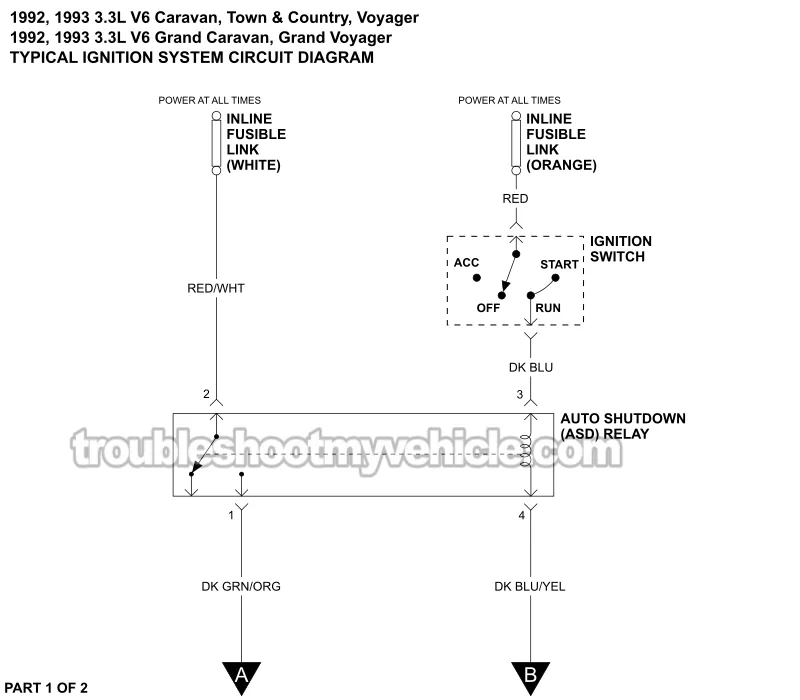

Ignition System Wiring Diagram (1992-1993 3.3L V6 Chrysler, Dodge, And Plymouth Minivan)

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:

• 3.3L V6 Chrysler Town & Country: 1992, 1993.
• 3.3L V6 Dodge Caravan: 1992, 1993.
• 3.3L V6 Dodge Grand Caravan: 1992, 1993.
• 3.3L V6 Plymouth Voyager: 1992, 1993.
• 3.3L V6 Plymouth Grand Voyager: 1992, 1993.

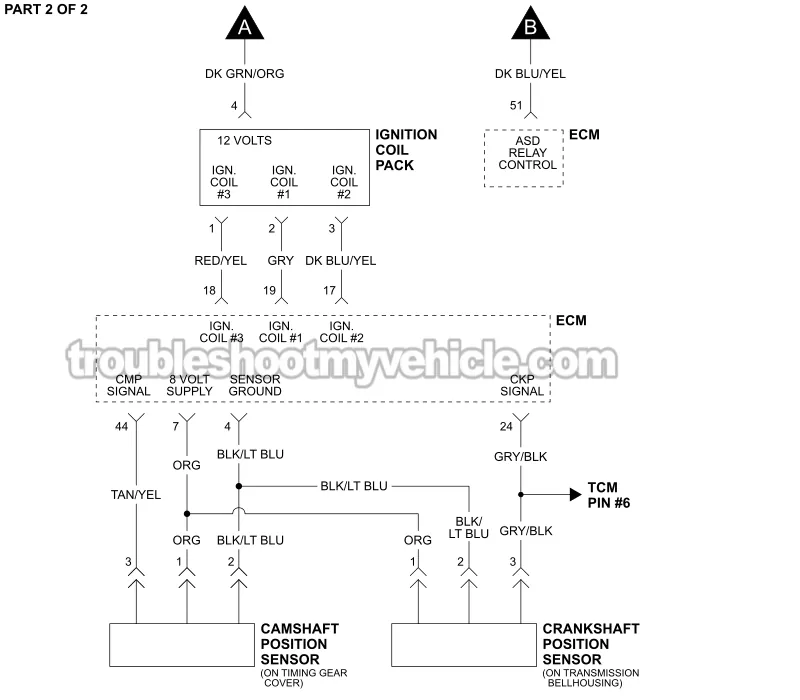

This circuit diagram includes the following circuits: ignition coil pack, crankshaft position (CKP) sensor, and camshaft position (CMP) sensor.

IGNITION SYSTEM TESTS:

• How To Test The CMP Sensor (1990-1993 3.3L V6 Chrysler, Dodge, And Plymouth Minivan).
• How To Test The CKP Sensor (1990-1993 3.3L V6 Chrysler, Dodge, And Plymouth Minivan).
• How To Test The Coil Pack (1990-1998 Chrysler 3.3L, 3.8L) (at: easyautodiagnostics.com).
