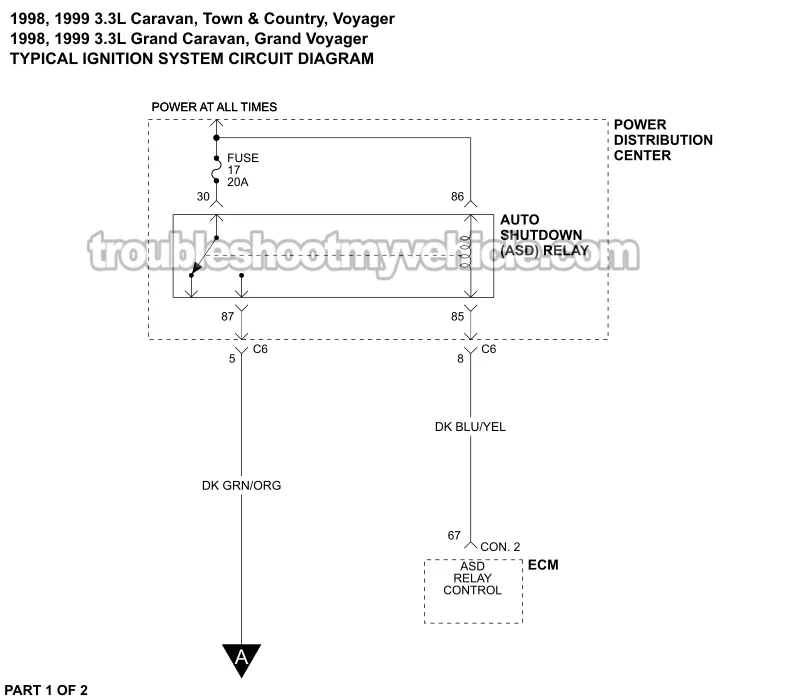

Ignition System Wiring Diagram (1998-1999 3.3L V6 Chrysler, Dodge, And Plymouth Minivan)

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:

• 3.3L V6 Chrysler Town & Country: 1998, 1999.
• 3.3L V6 Dodge Caravan: 1998, 1999.
• 3.3L V6 Dodge Grand Caravan: 1998, 1999.
• 3.3L V6 Plymouth Voyager: 1998, 1999.
• 3.3L V6 Plymouth Grand Voyager: 1998, 1999.

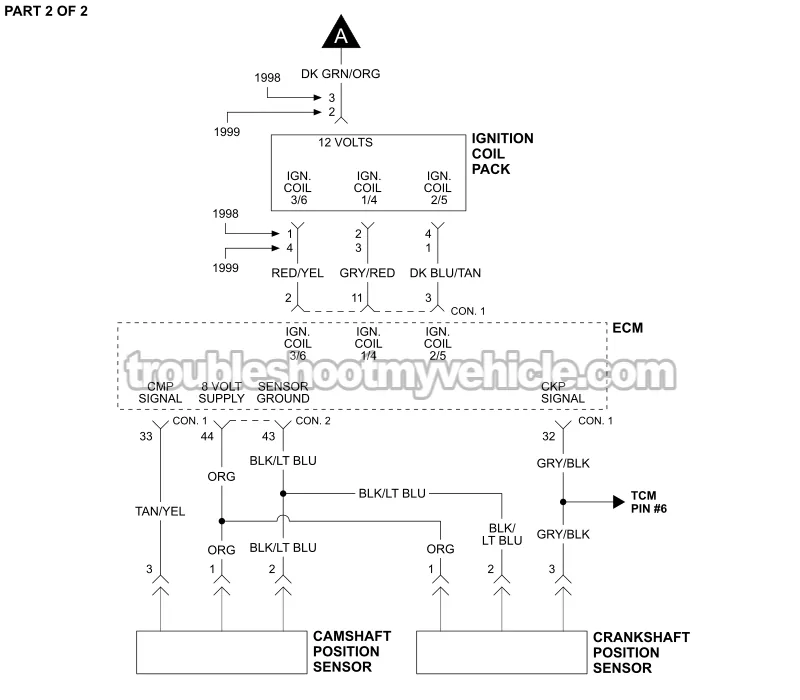

This typical circuit diagram includes the following circuits:

• Ignition coil pack.
• Crankshaft position (CKP) sensor.
• Camshaft position (CMP) sensor.

IGNITION SYSTEM TESTS:

• How To Test The CMP Sensor (1998-2000 3.3L V6 Chrysler, Dodge, And Plymouth Minivan).
• How To Test The CKP Sensor (1998-2000 3.3L V6 Chrysler, Dodge, And Plymouth Minivan).
• How To Test The Coil Pack (1990-1998 Chrysler 3.3L, 3.8L) (at: easyautodiagnostics.com).
• 1999-2001 Coil Pack Diagnostic Tests (Chrysler 3.3L) (at: easyautodiagnostics.com).
