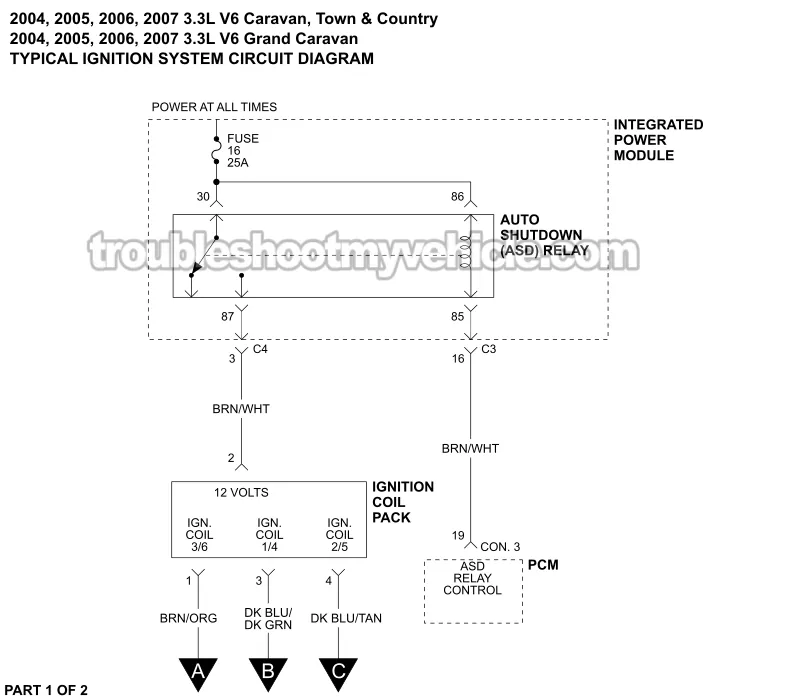

Ignition System Wiring Diagram (2004-2007 3.3L V6 Chrysler And Dodge Minivan)

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:

• 3.3L V6 Chrysler Town & Country: 2004, 2005, 2006, 2007.
• 3.3L V6 Dodge Caravan: 2004, 2005, 2006, 2007.
• 3.3L V6 Dodge Grand Caravan: 2004, 2005, 2006, 2007.

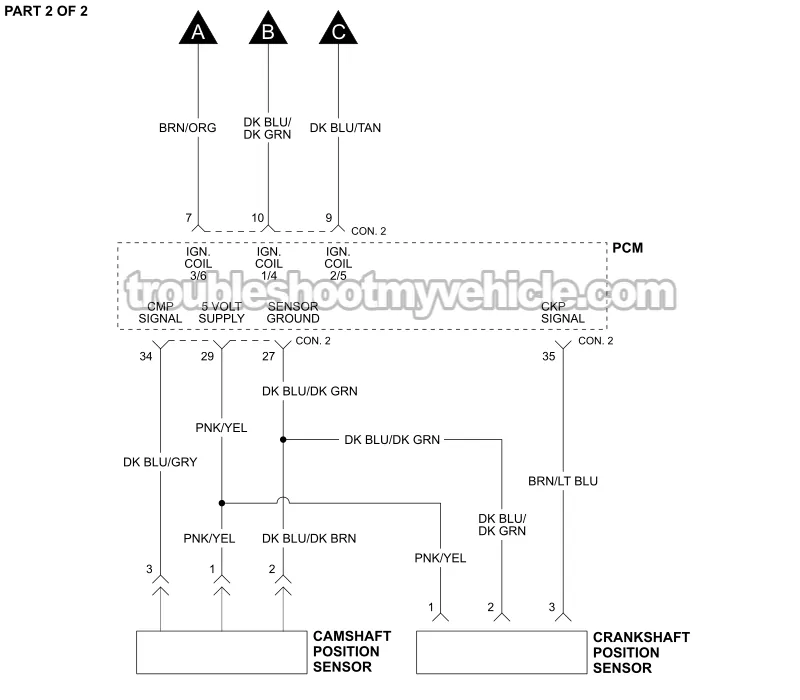

This typical circuit diagram includes the following circuits:

• Ignition coil pack.
• Crankshaft position (CKP) sensor.
• Camshaft position (CMP) sensor.

IGNITION SYSTEM TESTS:

• How To Test The CMP Sensor (2004-2007 3.3L V6 Chrysler And Dodge Minivan).
• How To Test The CKP Sensor (2004-2007 3.3L V6 Chrysler And Dodge Minivan).
• How To Test The Coil Pack (2001-2008 Chrysler 3.3L, 3.8L) (at: easyautodiagnostics.com).
