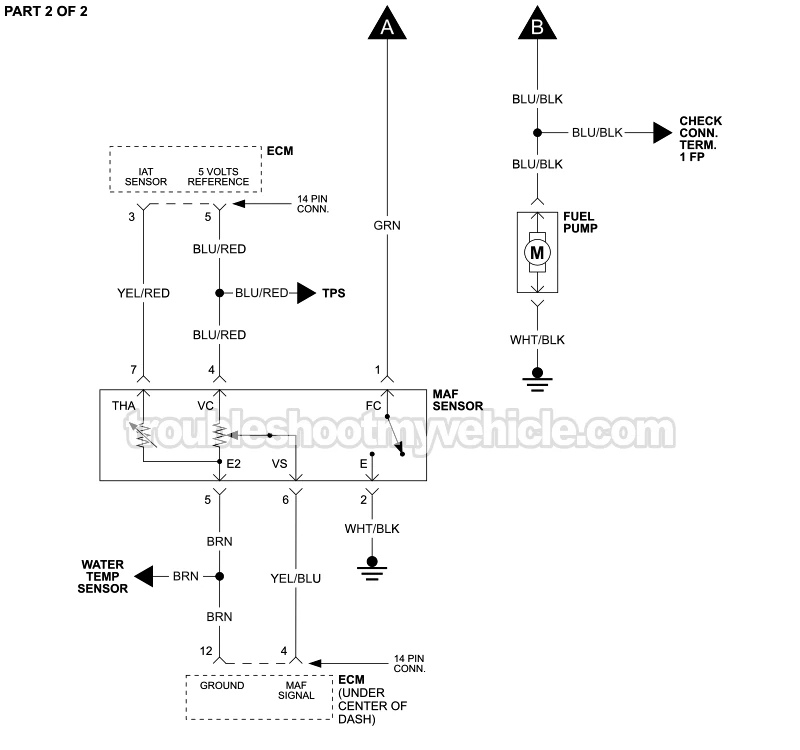

APPLIES TO: This MAF sensor and fuel pump circuit wiring diagram applies to the following vehicles:
- 2.0L Toyota Camry: 1987.
This wiring diagram includes the following component circuits:
- Circuit Opening Relay.
- EFI Main Relay.
- Fuel Pump.
- MAF Sensor.
MAF Sensor Test: You can find the MAF sensor test here:
Here are all of the available MAF sensor/fuel pump circuit wiring diagrams:
- MAF Sensor And Fuel Pump Circuit Wiring Diagram (1988-1989 2.0L Toyota Camry).
- MAF Sensor And Fuel Pump Circuit Wiring Diagram (1990-1991 2.0L Toyota Camry).
More 2.0L Toyota Camry Tutorials
You can find a complete list of 2.0L Toyota Camry tutorials and wiring diagrams in this index:
Here's a sample of the tutorials you'll find there:
- TPS Idle Switch Multimeter Test w/ Automatic Transaxle (1987-1991 2.0L Toyota Camry).
- How To Test The TPS w/ Automatic Transaxle (1987-1991 2.0L Toyota Camry).
- How To Test For A Blown Head Gasket (1987-1991 2.0L Toyota Camry).
- How To Test The Engine Compression (1987-1991 2.0L Toyota Camry).
- How To Test The MAF Sensor (1987-1991 2.0L Toyota Camry).
