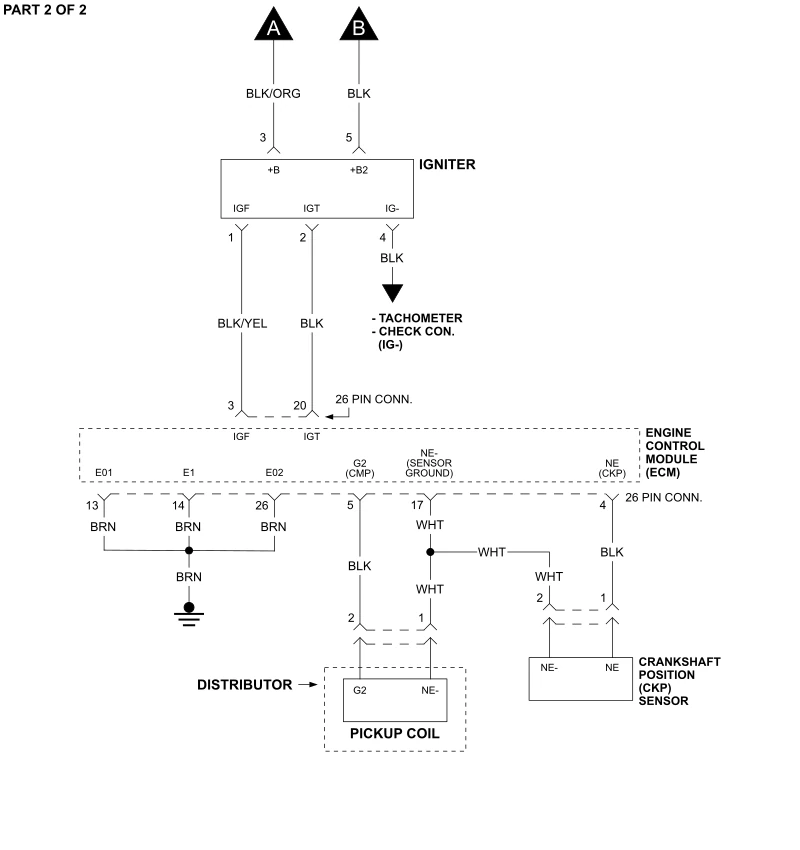

Ignition System Wiring Diagram (1995 1.8L Toyota Corolla)

APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:

• 1.8L (7A-FE) Toyota Corolla: 1995.

This ignition system wiring diagram includes the following components:

• Ignition Coil.
• Igniter.
• Distributor Pickup Coil.
• Crankshaft Position (CKP) Sensor.

Ignition System Tests:

• How To Test The Ignition Coil (1995-1997 1.6L Toyota Corolla).
• How To Test The Igniter (1995-1997 1.8L Toyota Corolla).
• How To Test The Distributor Pickup Coil (1995-1997 1.8L Toyota Corolla).
• How To Test The CKP Sensor (1995-1997 1.8L Toyota Corolla).

Ignition System Wiring Diagrams:

• Ignition System Wiring Diagram (1993-1994 1.8L Toyota Corolla).
• Ignition System Wiring Diagram (1996-1997 1.8L Toyota Corolla).
