Starter Motor Circuit Wiring Diagram (1995, 1996 1.5L Toyota Tercel)

DIAGRAM 2: With Standard Transmission

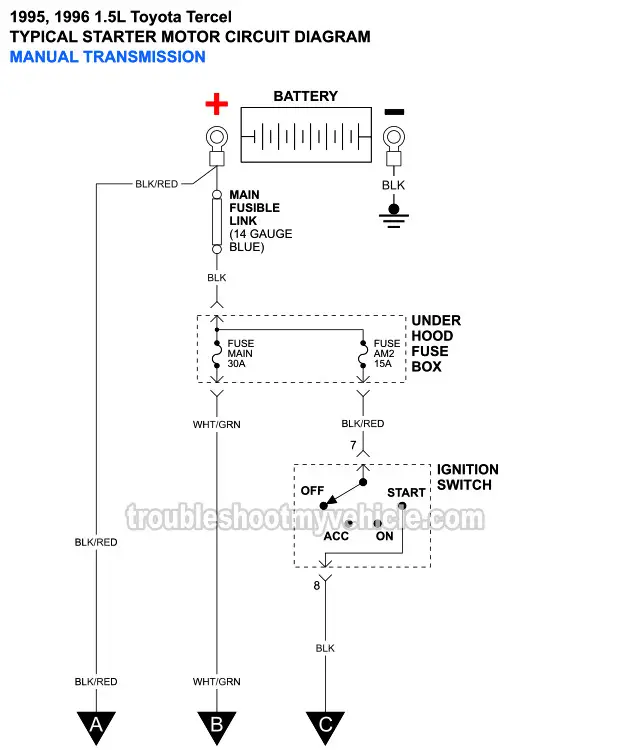

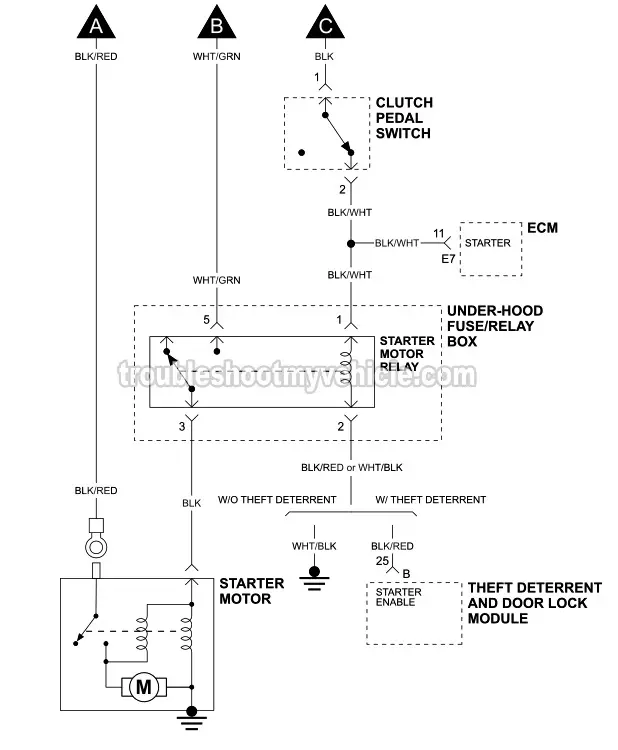

PART 1 -Starter Motor Circuit Wiring Diagram (1996 1.5L Toyota Tercel -With Manual Transmission) PART 2 -Starter Motor Circuit Wiring Diagram (1996 1.5L Toyota Tercel -With Manual Transmission)

This simplified starter motor circuit wiring diagram applies to the following vehicles:

  • 1995 1.5L Toyota Tercel: (equipped with a standard transmission).

This typical circuit diagram includes the following circuits:

  • Starter motor relay circuit.
  • Starter motor circuit.
  • Clutch pedal switch circuit.

The following tutorial will help you test the starter motor:
