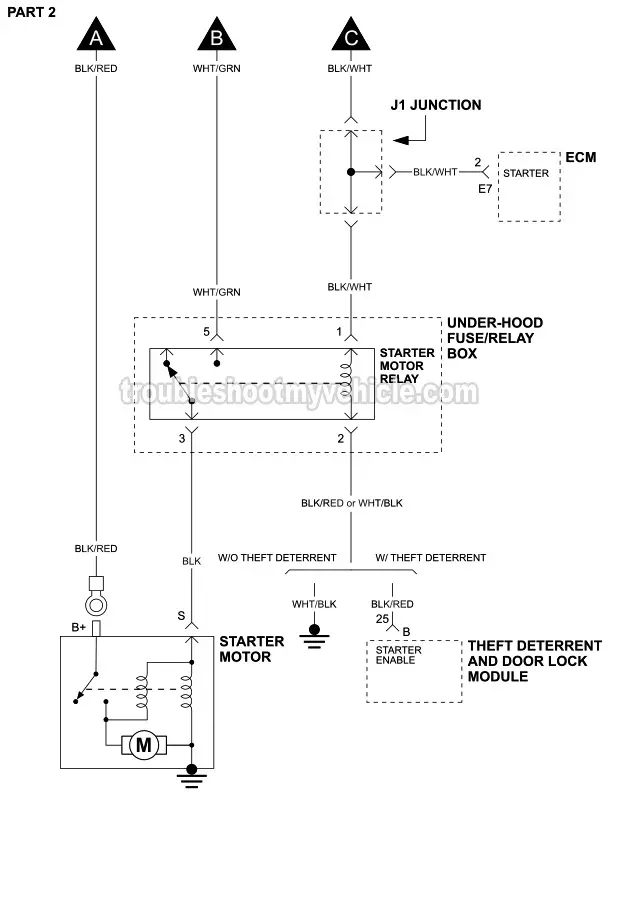

Starter Motor Circuit Wiring Diagram (1997, 1998 1.5L Toyota Tercel)

DIAGRAM 1: With Automatic Transmission

This simplified starter motor circuit wiring diagram applies to the following vehicles:

• 1997, 1998 1.5L Toyota Tercel: (equipped with an automatic transmission).

This typical circuit diagram includes the following circuits:

• Starter motor relay circuit.
• Starter motor circuit.
• Park/neutral safety switch circuit.
