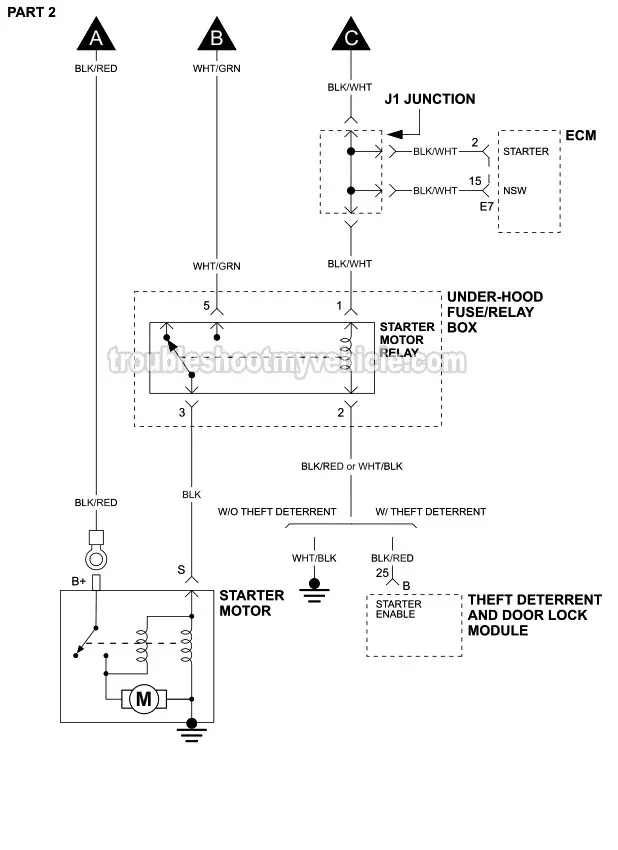

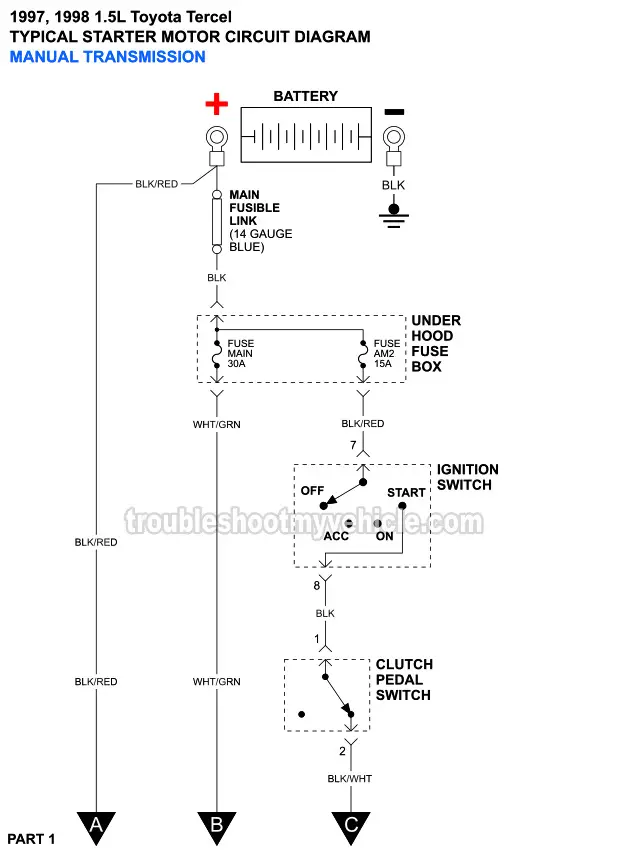

DIAGRAM 2: With Standard Transmission
This simplified starter motor circuit wiring diagram applies to the following vehicles:
- 1997, 1998 1.5L Toyota Tercel: (equipped with a standard transmission).
This typical circuit diagram includes the following circuits:
- Starter motor relay circuit.
- Starter motor circuit.
- Clutch pedal switch circuit.
RELATED WIRING DIAGRAMS:
- Starter Motor Circuit Wiring Diagram (1995, 1996 1.5L Toyota Tercel).
- Alternator Circuit Wiring Diagram (1995-1998 1.5L Toyota Tercel).
- Ignitor Wiring Diagram 1995-1996 1.5L Toyota Tercel.
