APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:
- 1996, 1997, 1998 4.0L Jeep Grand Cherokee.

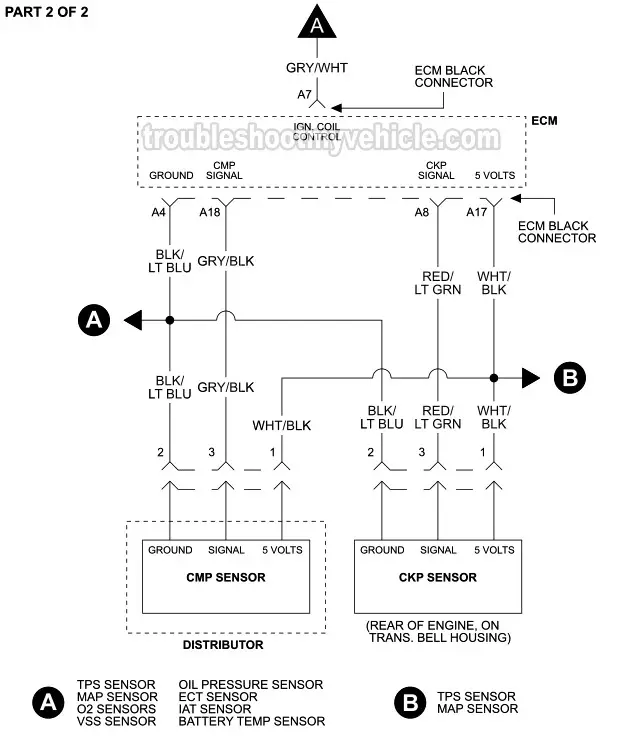

This ignition system wiring diagram includes the following circuits:
- Auto Shut Down (ASD) relay circuit.
- Ignition coil circuit.
- Camshaft position (CMP) sensor circuit.
- Crankshaft position (CKP) sensor circuit.
You can find the PCM connector pin-out charts here:
