How To Test The Crankshaft Position Sensor (1994-1996 4.0L Jeep)

How To Test The Crank Sensor (1994, 1995, 1996 4.0L Jeep Cherokee And Wrangler)

So many things can cause your Jeep 4.0L SUV not to start and the crank sensor is one of them.

Now, to make sure that the cranks but does not start problem is truly due to the crankshaft position sensor, you need to test it, and in this article I'll show you how to do it with a multimeter in Volts DC mode and without taking it off your Jeep.

In case you're needing a resistance test of the crank sensor, I hate to tell you that one does not exist. The crank sensor on your Jeep is a Hall Effect type sensor and it can not be tested by a simple resistance test.

Don't let this stop you from reading this article because the test I'm gonna' show you is very easy and is done in Volts DC mode on your multimeter.

In Spanish You can find this tutorial in Spanish here: Prueba Sensor De La Posición Del Cigüeñal (1994-1996 4.0L Jeep) (at:

Tools You'll Need:

  • Multimeter.
  • Jack
  • Jack Stands
  • 1/2 inch Ratchet Wrench

Important Tips And Suggestions

TIP 1: The crankshaft position sensor test I'm gonna' show you here is an on-car test. Although, the photos in this article show the crank sensor out of the vehicle, I've photograph the crank sensor out of the vehicle just to make it easier to explain the test.

TIP 2: To perform this test and get a very accurate result you can trust, I'm gonna' ask you to crank the engine by hand. This is super important, because if you use the starter motor to crank the engine- you're not gonna' get an accurate result.

By cranking the engine by hand, I mean turning the engine using a 1/2 ratchet wrench and an appropriate socket on the crank pulley.

TIP 3: One of the most important things to keep in mind, when testing the crank sensor on your Jeep, is that if you have tested for spark and you are getting spark, then the crank sensor is OK. A spark result tells you that the crank sensor is doing it's job. In a case like this (where you're getting spark), this test will not help you.

This also means that you should test for spark first.

TIP 4: The color of the wires (in the images) may not match the ones on your particular Jeep. This is no cause for concern, as long as you keep in mind that the connector locking tab is on top (in the photo), the circuits (wires) will be the same.

Where To Buy The Crank Sensor And Save

You can buy the original MOPAR crankshaft position sensor a whole lot cheaper online (not the mention that the after-market ones are too!). The following links will help you to comparison shop for the crank sensor on the 1994-1996 4.0L Grand Cherokee and 1994-1995 4.0L Jeep Wrangler:

Not sure if the above crankshaft position sensor fits your particular 1994-1996 4.0L Jeep? Don't worry, once you get to the site, they'll make sure it fits by asking you the particulars of your vehicle. If it doesn't fit, they'll find you the right one.

Circuit Descriptions Of The Crank Sensor

How To Test The Crank Sensor (1994, 1995, 1996 4.0L Jeep Cherokee And Wrangler)

The crankshaft position sensor, on your 4.0L Jeep equipped SUV, is a Hall-Effect three wire crankshaft position sensor. What this means: it produces an ON/OFF DC voltage signal that can be easily measured with a multimeter, an oscilloscope, and even an LED light.

Each one of the three wires that connect to it have a specific job to do. One delivers power in the form of 5 Volts from the PCM. Another delivers Ground. This Ground is provided inside the PCM, too. The last remaining, delivers the signal, that the CKP sensor creates, to the PCM.

The most important thing to know, is that if the CKP goes bad, your Jeep vehicle will crank but not start.

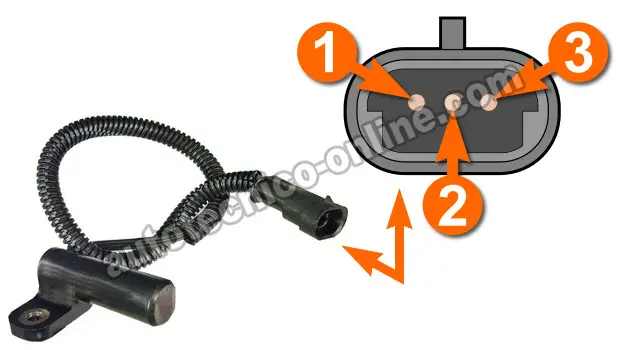

Crank Sensor Circuit Descriptions 1994-1996 4.0L Grand Cherokee
Terminal Color Description
1 RED/LT GRN Crank Signal
2 BLK/LT BLU Ground
3 WHT/BLK 8 Volts (1994-1995)
5 Volts (1996)
Crank Sensor Circuit Descriptions
1994-1995 4.0L Wrangler
Terminal Color Description
1 GRY/BLK Crank Signal
2 BLK/LT BLU Ground
3 ORG 8 Volts

Jeep Vehicles:

  • Grand Cherokee 4.0L
    • 1994,
  • Wrangler 4.0L
    • 1994,
