Auto Shut Down (ASD) Relay Wiring Diagram (1993-1995 4.0L Jeep Grand Cherokee)

By: Abraham Torres-Arredondo
Created: 27 April 2014
Updated: 13 February 2024
Articl Id: 619

ASD Relay Wiring Diagram (1993, 1994, 1995 4.0L Jeep Grand Cherokee)

APPLIES TO: This Auto Shut Down (ASD) relay circuit wiring diagram applies to the following vehicles:

1993, 1994, 1995 4.0L Jeep Grand Cherokee.

ASD relay troubleshooting notes:

The auto shut down (ASD) relay gets power from fuse #6 (15 Amp) and fuse #2 (20 Amp) of the Power Distribution Center (PDC).
The PCM activates the ASD relay and the fuel pump relay at the exact same time and thru' the same circuit (PNK wire).
The PCM activates the ASD relay when the ignition switch is in the RUN or START position and the PCM senses engine RPMs (thru' the crank and cam sensors). If either sensor indicates no engine RPMs, the PCM will de-activate the ASD relay.

RELATED WIRING DIAGRAMS:

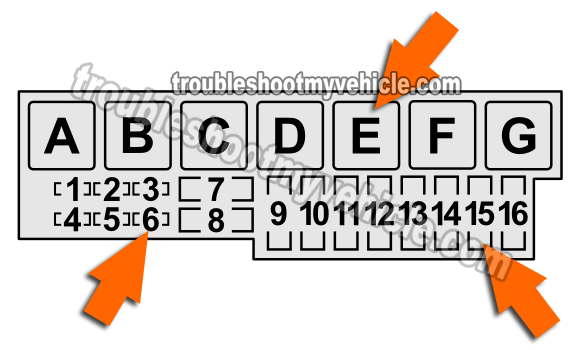

ASD Relay Relay/Fuses Location

For a complete description of the relays/fuses of the power distribution box, see:

1995 Grand Cherokee Power Distribution Center.
