Radiator Fan Motor Circuit
APPLIES TO: This radiator fan motor circuit wiring diagram applies to the following vehicles:
- 1.6L Honda Civic CX: 1995.
- 1.6L Honda Civic DX: 1995.
- 1.6L Honda Civic EX: 1995.
- 1.6L Honda Civic LX: 1995.
You can find the wiring for the 1996-2000 1.6L Honda Civic here:
- Radiator And Condenser Fan Motor Circuit Wiring Diagram (1996-1998 1.6L Honda Civic).
- Radiator And Condenser Fan Motor Circuit Wiring Diagram (1999-2000 1.6L Honda Civic).
Radiator Fan Motor Test: I've written a tutorial on how to test the radiator fan motor. You can find it here:

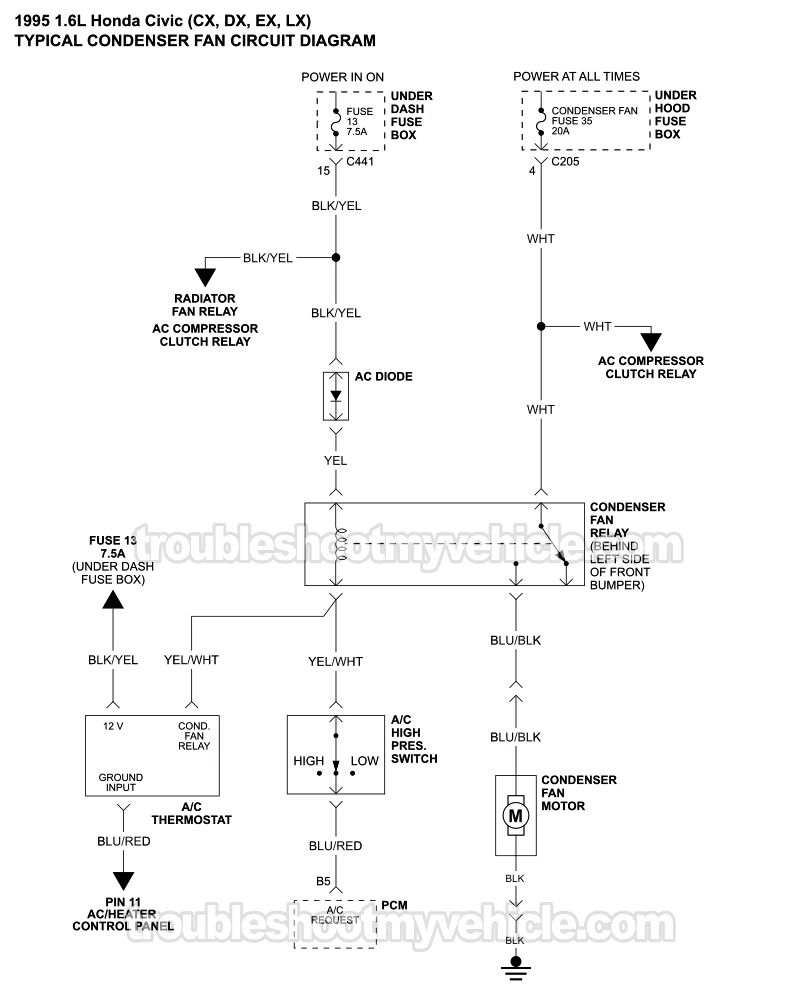

Condenser Fan Motor Circuit
APPLIES TO: This condenser fan motor circuit wiring diagram applies to the following vehicles:
- 1.6L Honda Civic CX: 1995.
- 1.6L Honda Civic DX: 1995.
- 1.6L Honda Civic EX: 1995.
- 1.6L Honda Civic LX: 1995.
You can find the wiring for the 1996-2000 1.6L Honda Civic here:
- Radiator And Condenser Fan Motor Circuit Wiring Diagram (1996-1998 1.6L Honda Civic).
- Radiator And Condenser Fan Motor Circuit Wiring Diagram (1999-2000 1.6L Honda Civic).
Condenser Fan Motor Test: I've written a tutorial on how to test the condenser fan motor. You can find it here:
