Radiator And Condenser Fan Motor Circuit Wiring Diagram (1996-1998 1.6L Honda Civic)

Radiator Fan Motor Circuit

APPLIES TO: This radiator fan motor circuit wiring diagram applies to the following vehicles:

• 1.6L Honda Civic CX: 1996, 1997, 1998.
• 1.6L Honda Civic DX: 1996, 1997, 1998.
• 1.6L Honda Civic EX: 1996, 1997, 1998.
• 1.6L Honda Civic LX: 1996, 1997, 1998.

You can find the wiring for the 1995 and 1999-2000 1.6L Honda Civic here:

• Radiator And Condenser Fan Motor Circuit Wiring Diagram (1995 1.6L Honda Civic).
• Radiator And Condenser Fan Motor Circuit Wiring Diagram (1999-2000 1.6L Honda Civic).

Radiator Fan Motor Test: I've written a tutorial on how to test the radiator fan motor. You can find it here:

• How To Test The Radiator Fan Motor (1995-2000 1.6L Honda Civic).

Condenser Fan Motor Circuit

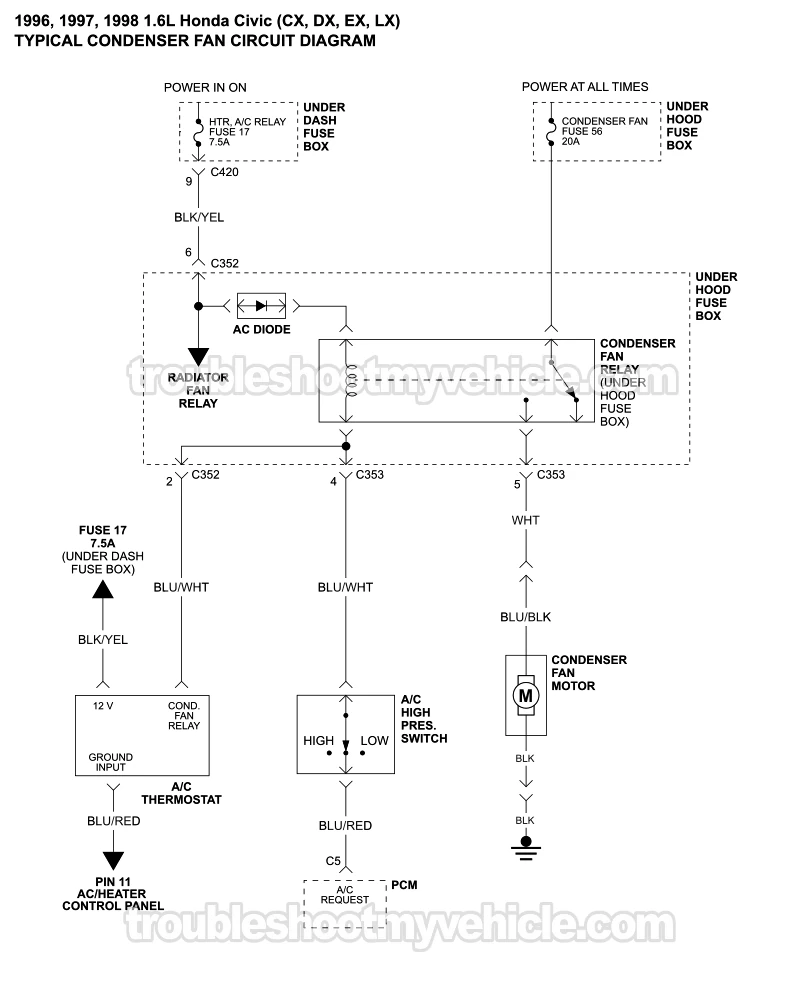

APPLIES TO: This condenser fan motor circuit wiring diagram applies to the following vehicles:

• 1.6L Honda Civic CX: 1996, 1997, 1998.
• 1.6L Honda Civic DX: 1996, 1997, 1998.
• 1.6L Honda Civic EX: 1996, 1997, 1998.
• 1.6L Honda Civic LX: 1996, 1997, 1998.

You can find the wiring for the 1995 and 1999-2000 1.6L Honda Civic here:

• Radiator And Condenser Fan Motor Circuit Wiring Diagram (1995 1.6L Honda Civic).
• Radiator And Condenser Fan Motor Circuit Wiring Diagram (1999-2000 1.6L Honda Civic).

Condenser Fan Motor Test: I've written a tutorial on how to test the condenser fan motor. You can find it here:

• How To Test The Condenser Fan Motor (1995-2001 1.6L Honda Civic).
