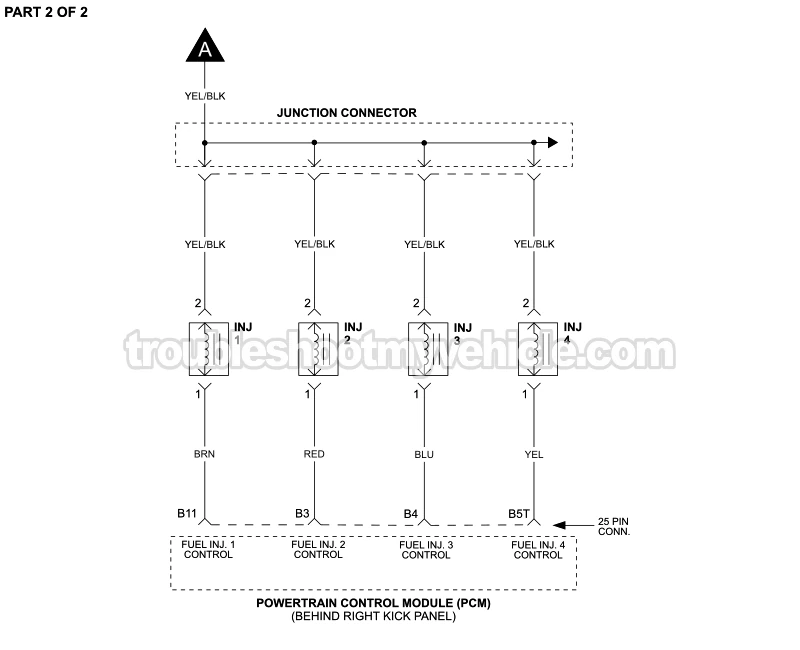

Fuel Injector Circuit Wiring Diagram (1999-2000 1.6L Honda Civic)

APPLIES TO: This radiator fan motor circuit wiring diagram applies to the following vehicles:

• 1.6L Honda Civic CX: 1999, 2000.
• 1.6L Honda Civic DX: 1999, 2000.
• 1.6L Honda Civic EX: 1999, 2000.
• 1.6L Honda Civic LX: 1999, 2000.

You can find the fuel injector wiring diagram for the 1995-1998 1.6L Honda Civic here:

• Fuel Injector Circuit Wiring Diagram (1995 1.6L Honda Civic).
• Fuel Injector Circuit Wiring Diagram (1996-1998 1.6L Honda Civic).

Fuel Injector Test: You can find the fuel injector multimeter test here:

• How To Test The Fuel Injectors (1995-2000 1.6L Honda Civic).
