Ignition System Wiring Diagram (1992-1995 1.5L Honda Civic)

APPLIES TO: This wiring diagram applies to the following vehicles (with and without VTEC):

• 1.5L Honda Civic CX: 1992, 1993, 1994, 1995.
• 1.5L Honda Civic DX: 1992, 1993, 1994, 1995.
• 1.5L Honda Civic EX: 1992, 1993, 1994, 1995.
• 1.5L Honda Civic LX: 1992, 1993, 1994, 1995.
• 1.5L Honda Civic Si: 1992, 1993, 1994, 1995.
• 1.5L Honda Civic VX: 1992, 1993, 1994, 1995.
• 1.5L Honda Civic Del Sol S: 1993, 1994, 1995.
• 1.5L Honda Civic Del Sol Si: 1993, 1994, 1995.

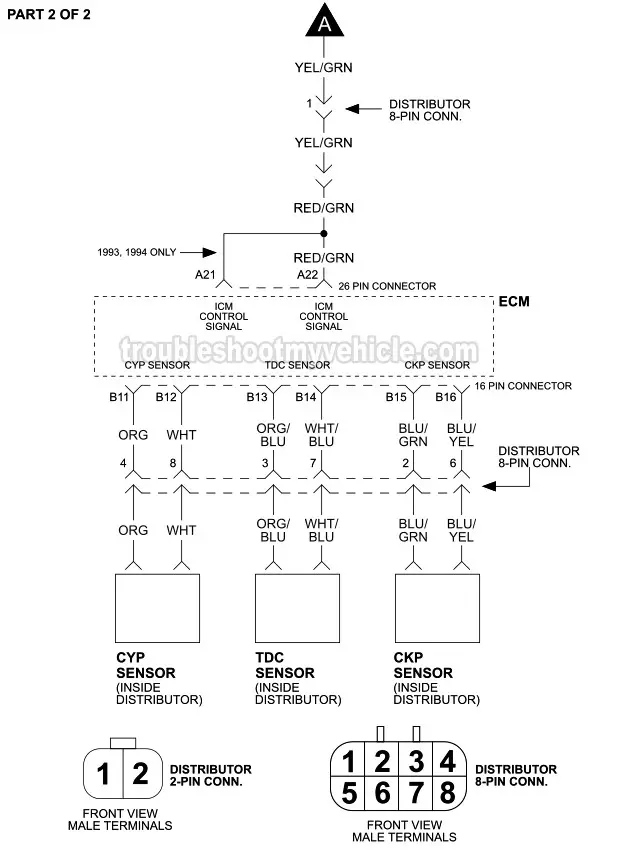

NOTE: The above wiring diagram applies to the 1993, 1994, and 1995 1.5L Honda Civic. It includes the following circuits:

• Igniter (ignition control module).
• Ignition coil.
• TDC sensor.
• CYP sensor.
• CKP sensor.

You can very easily test the igniter (ignition control module) and the ignition coil. You can find the tests here: How To Test The Igniter, Ignition Coil Accord, Civic, CRV, and Odyssey (at easyautodiagnostics.com).
