Fuel Injector Circuit Wiring Diagram (1992-1995 1.5L Honda Civic)

APPLIES TO: This wiring diagram applies to the following vehicles (with and without VTEC):

• 1.5L Honda Civic CX: 1992, 1993, 1994, 1995.
• 1.5L Honda Civic DX: 1992, 1993, 1994, 1995.
• 1.5L Honda Civic EX: 1992, 1993, 1994, 1995.
• 1.5L Honda Civic LX: 1992, 1993, 1994, 1995.
• 1.5L Honda Civic Si: 1992, 1993, 1994, 1995.
• 1.5L Honda Civic VX: 1992, 1993, 1994, 1995.
• 1.5L Honda Civic Del Sol S: 1993, 1994, 1995.
• 1.5L Honda Civic Del Sol Si: 1993, 1994, 1995.

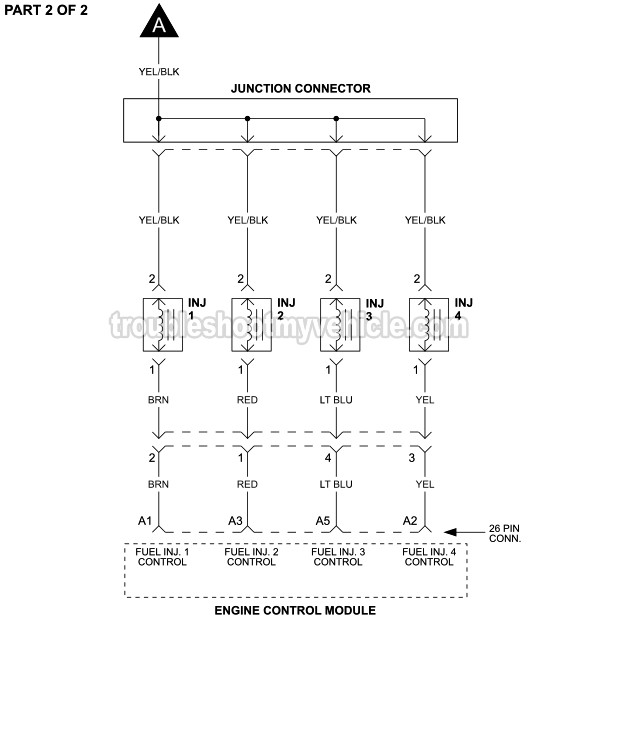

NOTE: The fuel injector circuit wiring diagram above includes the following circuits:

• Fuel Injectors.
• PGM-FI Main Relay.

You can find the fuel injector test here: How To Test The Fuel Injectors (1992-1995 1.5L Honda Civic).

The PGM-FI Main Relay can be easily tested with a multimeter. You can find the tutorial here: How To Test The PGM-FI Main Relay (1992-1995 1.5L Honda Civic).

RELATED WIRING DIAGRAMS:

• Ignition System Wiring Diagram (1992-1995 1.5L Honda Civic).
• Fuel Pump Circuit Wiring Diagram (1992-1995 1.5L Honda Civic).
• PGM-FI Main Relay Circuit Diagram (1992-1995 1.5L Honda Civic).
