1992-1993 F150-F350 Fuel Pump Circuit Tests (Ford 4.9L, 5.0L, 5.8L)

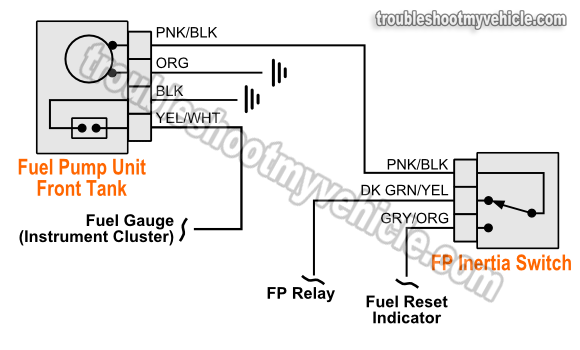

Fuel Pump Unit Wiring Diagram (Single Tank)

Fuel Pump Inertia Switch Diagnostic/Troubleshooting Notes:

• The DK GRN/YEL wire:
  • Should have 10 to 12 Volts DC while cranking the engine.
  • This power comes from the fuel pump relay.
• The PNK/BLK wire:
  • Should have 10 to 12 Volts DC while cranking the engine (if the inertia switch IS NOT tripped).
• Inertia Switch (unplugged from its connector):
  • Continuity should exist between pin that connects to DK GRN/YEL wire and pin that connects to PNK/BLK wire (if switch IS NOT tripped).
