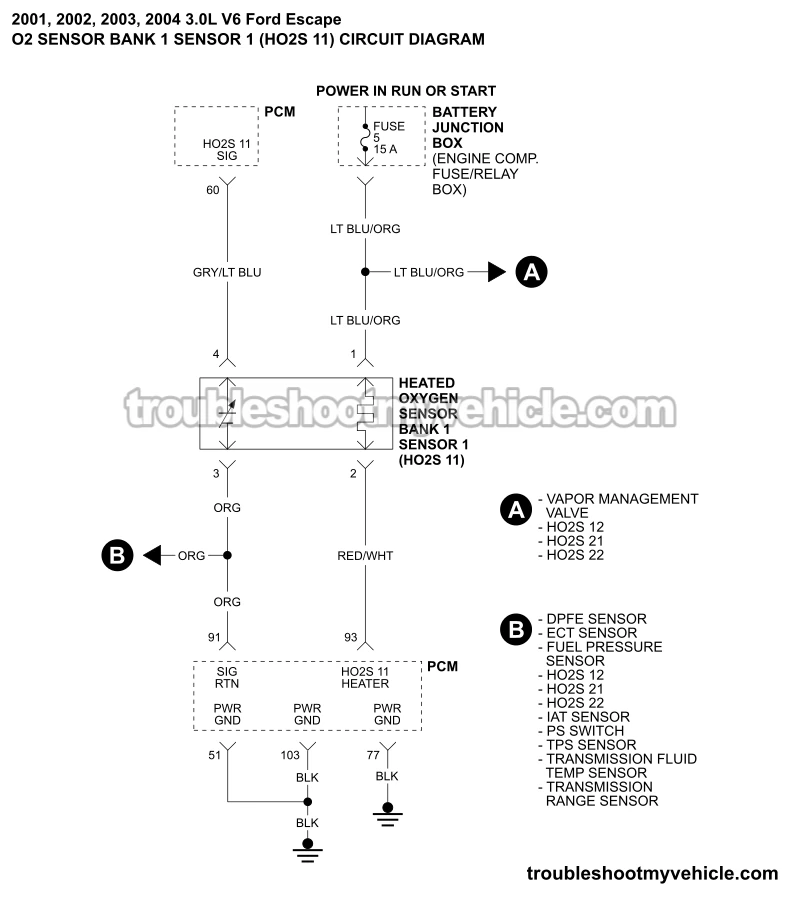

O2 Sensor Bank 1 Sensor 1 Circuit Wiring Diagram (2001-2004 3.0L V6 Ford Escape)

APPLIES TO: This H2OS 11 sensor circuit wiring diagram applies to the following vehicles:

This wiring diagram includes the following circuits:

Fuse 5: Located in the Battery Junction Box, front left corner of engine compartment.
Heated Oxygen Sensor Bank 1 Sensor 1 (HO2S 11): Located on the the exhaust manifold facing the firewall.

Measures the O2 content of the exhaust gas of cylinders 1, 2 and 3 (Bank 1) before it enters the catalytic converter.

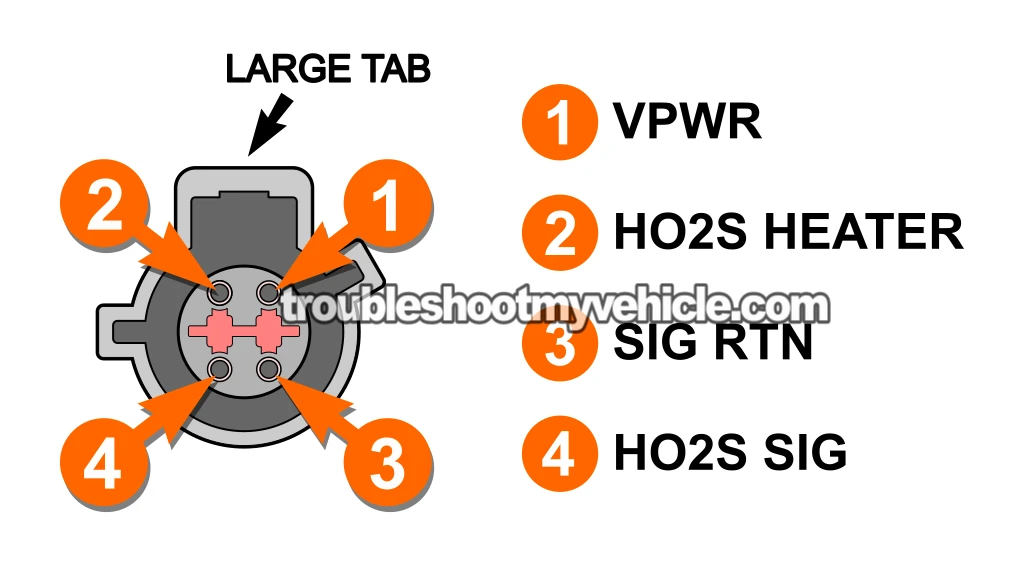

HO2S Bank 1 Sensor 1 Connector Pinout

Pin	Wire	Description
1	Light blue with orange stripe (LT BLU/ORG)	VPWR –Vehicle Power (12 Volts)
2	Red with white stripe (RED/WHT)	HO2S 11 HEATER –PCM Supplied Ground (heater activation signal)
3	Orange (ORG)	SIG RTN –O2 Sensor Signal Ground
4	Gray with light blue stripe (GRY/LT BLU)	HO2S 11 SIG –O2 Sensor Signal

P0135 DIAGNOSTIC TESTS: The following tutorial will help you test the Bank 1 Sensor 1 O2 sensor's heater element with a multimeter:

P0135 -O2 Sensor Bank 1 Sensor 1 Heater Tests (2001-2004 3.0L V6 Ford Escape).
