![PART 1 -Fuel Pump Circuit Wiring Diagram. 1992, 1993 5.2L V8 Dodge B150 Van, B250 Van, B350 Van, D150 Pickup, D250 Pickup, W150 Pickup PART 1 -Fuel Pump Circuit Wiring Diagram. 1992, 1993 5.2L V8 Dodge B150 Van, B250 Van, B350 Van, D150 Pickup, D250 Pickup, W150 Pickup](/images/articles-800-899/860/865/circuit-diagram-1.jpg)

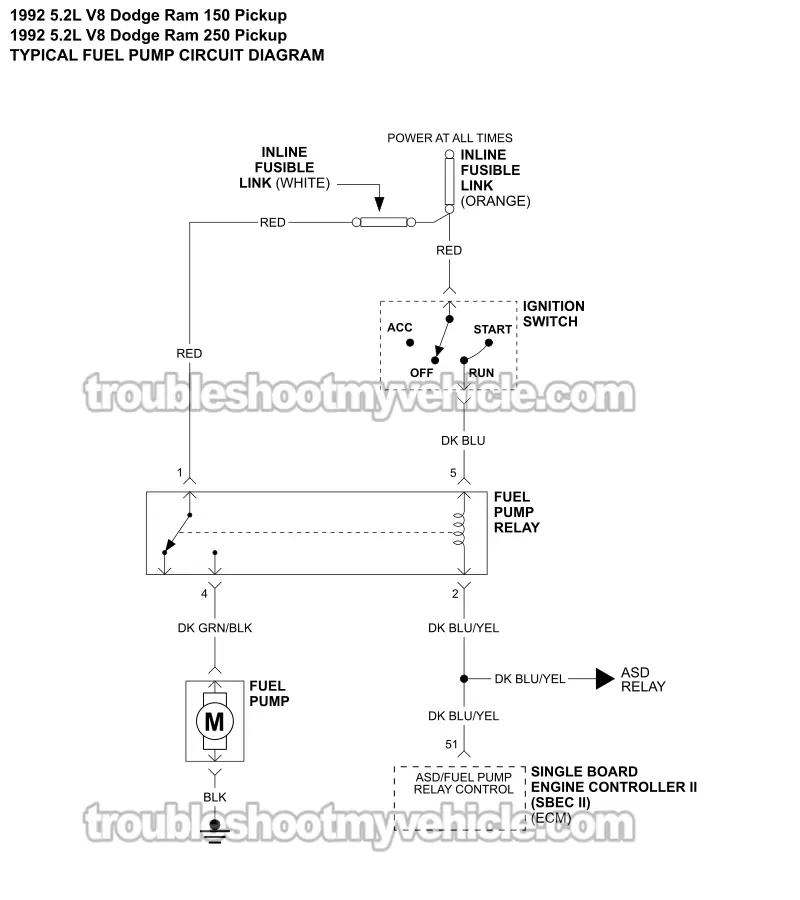

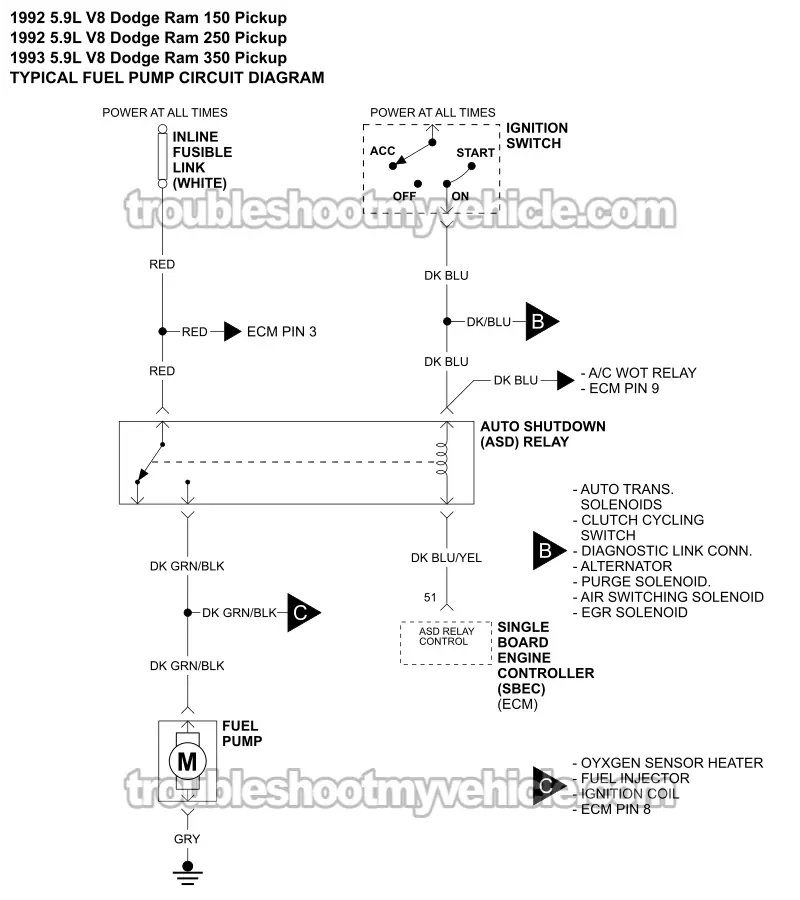

This simplified fuel pump circuit wiring diagram applies to the following vehicles:
- 5.2L V8 Dodge B150 Van: 1992, 1993.
- 5.2L V8 Dodge B250 Van: 1992, 1993.
- 5.2L V8 Dodge B350 Van: 1992, 1993.
- 5.2L V8 Dodge D150 Pickup: 1992, 1993.
- 5.2L V8 Dodge D250 Pickup: 1992, 1993.
- 5.2L V8 Dodge Ramcharger: 1992, 1993.
- 5.2L V8 Dodge W150 Pickup: 1992, 1993.
- 5.2L V8 Dodge W250 Pickup: 1992, 1993.
This typical circuit diagram includes the following circuits: fuel pump and fuel pump relay circuits.
The fuel pump is located in the gas tank.
