Fuel Pump Circuit Wiring Diagram (1993 5.2L, 5.9L V8 Dodge Ram Pickup)

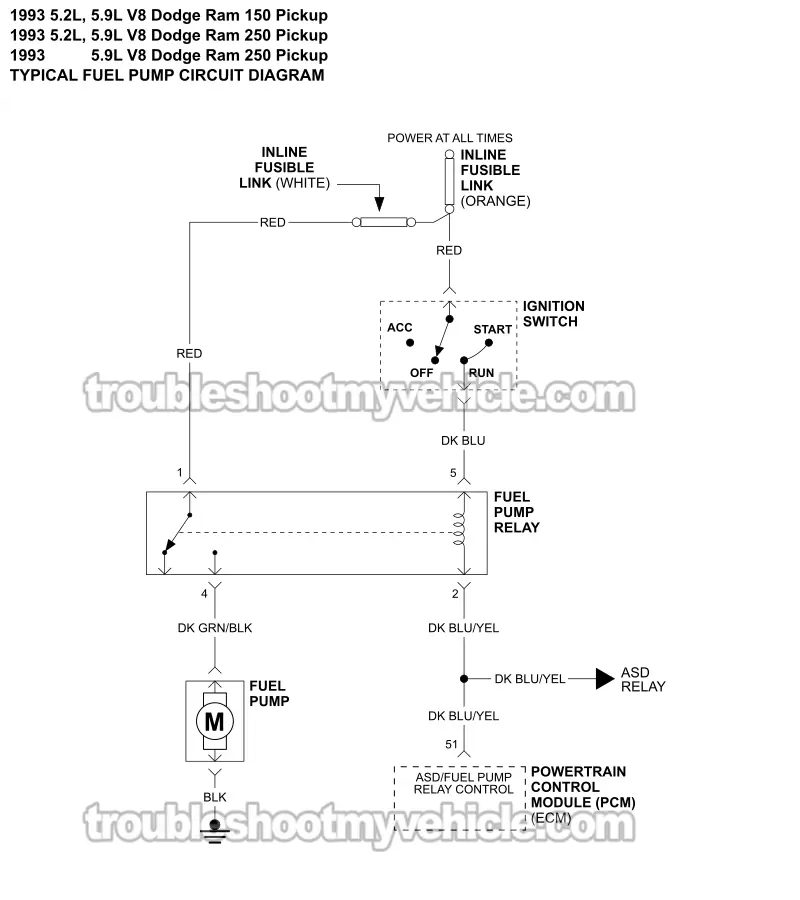

APPLIES TO: This simplified fuel pump circuit wiring diagram applies to the following vehicles:

• 5.2L, 5.9L V8 Dodge Ram 150 Pickup: 1993.
• 5.2L, 5.9L V8 Dodge Ram 250 Pickup: 1993.
• 5.9L V8 Dodge Ram 350 Pickup: 1993.

This circuit diagram includes the following circuits:

• Fuel pump.
• Fuel pump relay.

The fuel pump is located in the gas tank.

The following tutorials explains how to perform a fuel pump pressure test:

• How To Test The Fuel Pump (1992-2003 5.2L, 5.9L V8 Dodge Ram Pickup).
