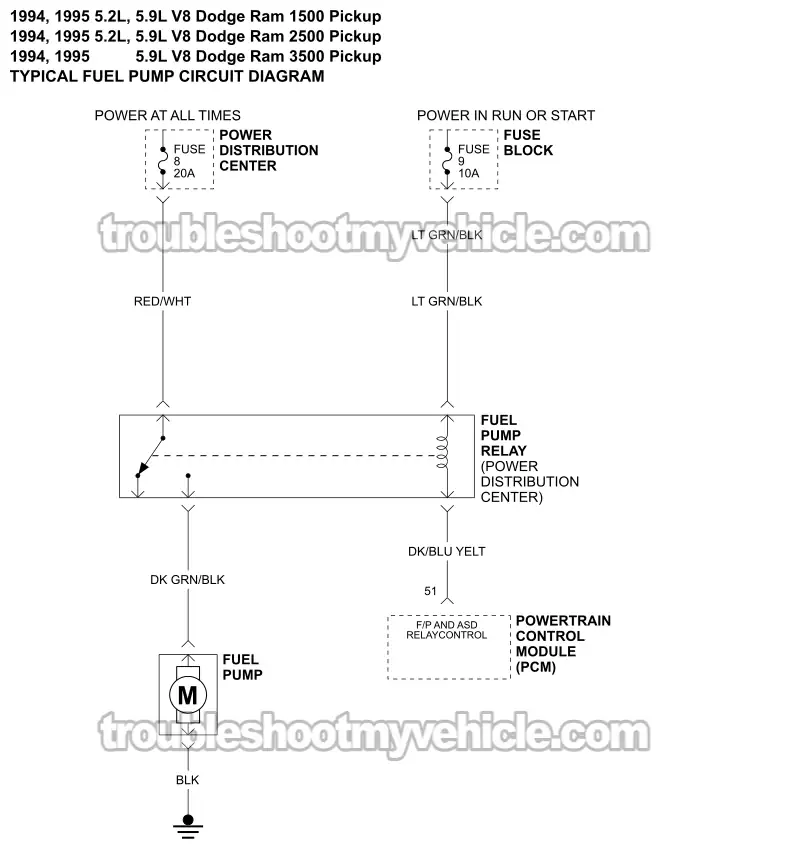

Fuel Pump Circuit Wiring Diagram (1994-1995 5.2L, 5.9L V8 Dodge Ram Pickup)

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:

• 5.2L, 5.9L V8 Dodge 1500 Pickup: 1994, 1995.
• 5.2L, 5.9L V8 Dodge 2500 Pickup: 1994, 1995.
• 5.9L V8 Dodge 3500 Pickup: 1994, 1995.

This typical circuit diagram includes the following circuits:

• Fuel pump.
• Fuel pump relay.

The fuel pump is located in the gas tank.
