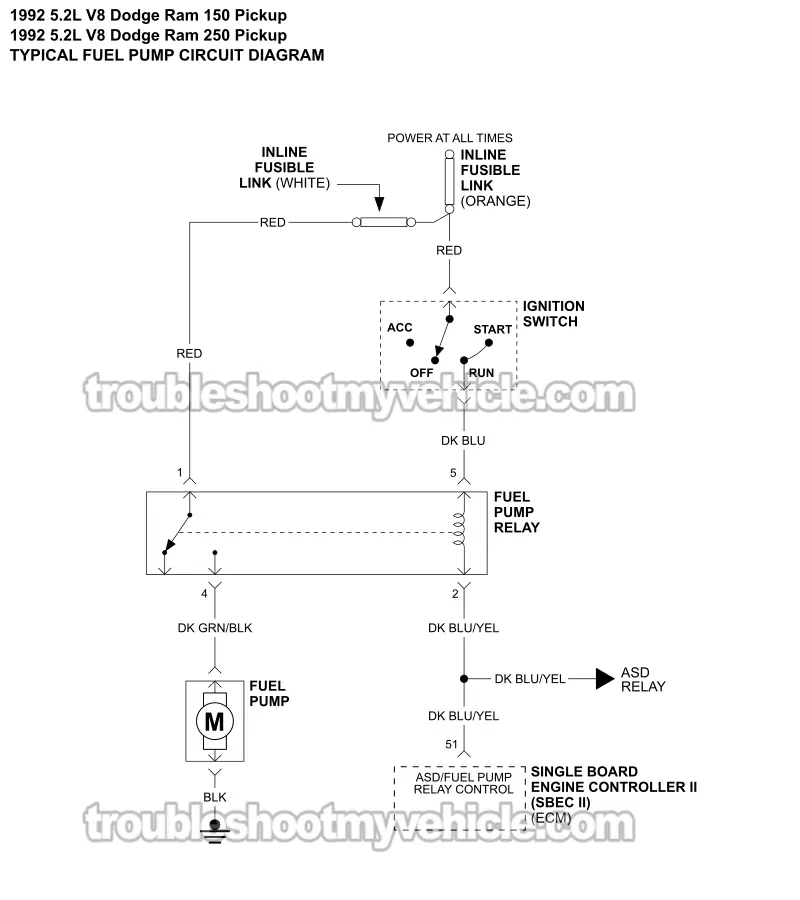

PART 1 -Fuel Pump Circuit Wiring Diagram. 1992, 1993 5.2L V8 Dodge B150 Van, B250 Van, B350 Van, D150 Pickup, D250 Pickup, W150 Pickup

This simplified fuel pump circuit wiring diagram applies to the following vehicles:

  1. 5.2L V8 Dodge B150 Van: 1992, 1993.
  2. 5.2L V8 Dodge B250 Van: 1992, 1993.
  3. 5.2L V8 Dodge B350 Van: 1992, 1993.
  4. 5.2L V8 Dodge D150 Pickup: 1992, 1993.
  5. 5.2L V8 Dodge D250 Pickup: 1992, 1993.
  6. 5.2L V8 Dodge Ramcharger: 1992, 1993.
  7. 5.2L V8 Dodge W150 Pickup: 1992, 1993.
  8. 5.2L V8 Dodge W250 Pickup: 1992, 1993.

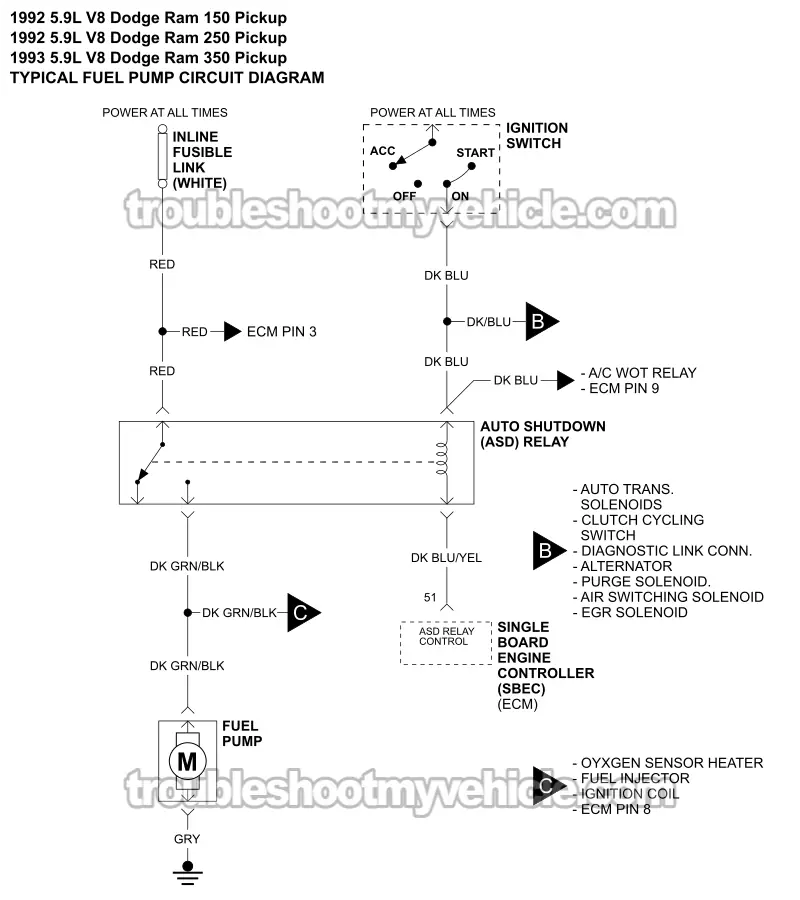

This typical circuit diagram includes the following circuits: fuel pump and fuel pump relay circuits.

The fuel pump is located in the gas tank.

More 5.2L V8 Dodge Pickup And Van Tutorials

You can find a complete list of 5.2L V8 Dodge pickup and van tutorials in this index:

  1. Chrysler 5.2L, 5.9L Index Of Articles.
  2. Chrysler 3.9L, 5.2L, 5.9L Index Of Articles.
