Starter Motor Circuit Diagram (1994-1995 2.5L Caravan And Voyager)

  • By: Abraham Torres-Arredondo
  • Created: 08 December 2019
  • Updated: 19 December 2022
  • Articl Id: 911
Page 2 of 2

DIAGRAM 2: With Standard (Manual) Transmission

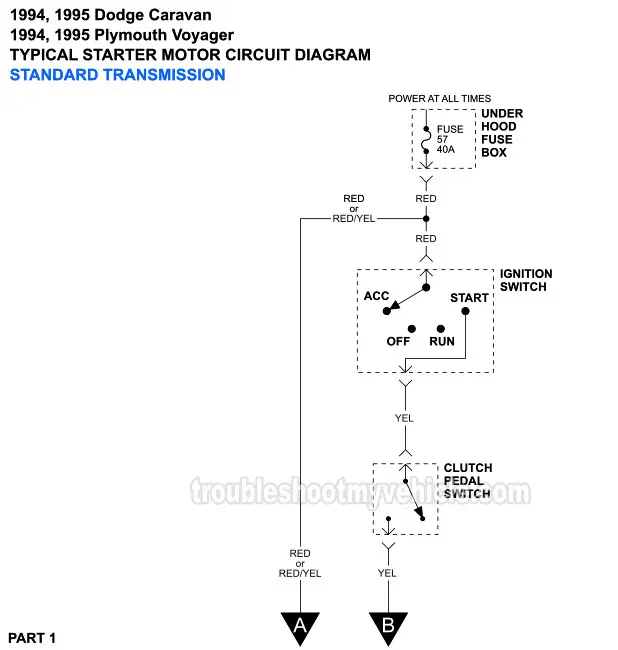

PART 1 -Starter Motor Wiring Diagram (With Standard Transmission). 1994, 1995 2.5L Dodge Caravan And 2.5L Plymouth Voyager PART 2 -Starter Motor Wiring Diagram (With Standard Transmission). 1994, 1995 2.5L Dodge Caravan And 2.5L Plymouth Voyager

This simplified starter motor circuit wiring diagram applies to the following vehicles with standard (manual) transmission:

  • 2.5L Dodge Caravan: 1994, 1995.
  • 2.5L Plymouth Voyager: 1994, 1995.
