Starter Motor Circuit Diagram (1994-1995 2.5L Caravan And Voyager)

  • By: Abraham Torres-Arredondo
  • Created: 08 December 2019
  • Updated: 26 April 2025
  • Articl Id: 911
Page 1 of 2

DIAGRAM 1: With Automatic Transmission

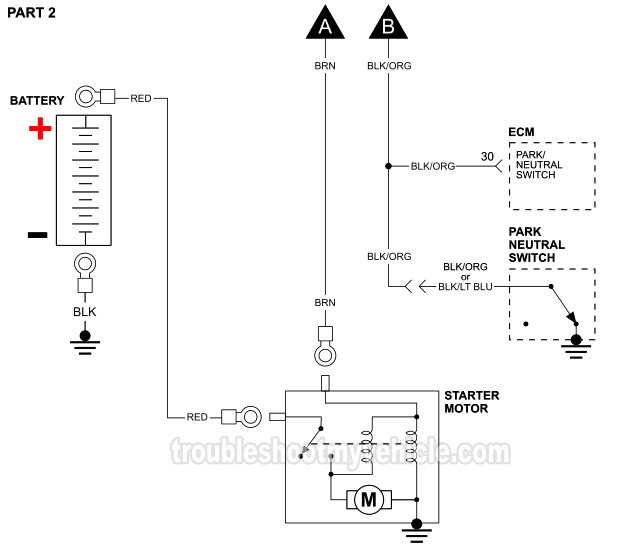

PART 1 -Starter Motor Wiring Diagram (With Automatic Transmission). 1994, 1995 2.5L Dodge Caravan And 2.5L Plymouth Voyager PART 2 -Starter Motor Wiring Diagram (With Automatic Transmission). 1994, 1995 2.5L Dodge Caravan And 2.5L Plymouth Voyager

APPLIES TO: This simplified starter motor circuit wiring diagram applies to the following vehicles with an automatic transmission:

  • 2.5L Dodge Caravan: 1994, 1995.
  • 2.5L Plymouth Voyager: 1994, 1995.

The starter motor circuit diagram for the Dodge Caravan and Plymouth Voyager equipped with a manual transmission is in the next page.
