EVAP System Wiring Diagram (1999-2000 2.4L Chrysler, Dodge, And Plymouth Minivan)

APPLIES TO: This simplified EVAP Emissions system wiring diagram applies to the following vehicles:

• 2.4L Dodge Caravan: 1999, 2000.
• 2.4L Dodge Grand Caravan: 1999.
• 2.4L Plymouth Voyager: 1999, 2000.
• 2.4L Plymouth Grand Voyager: 1999.

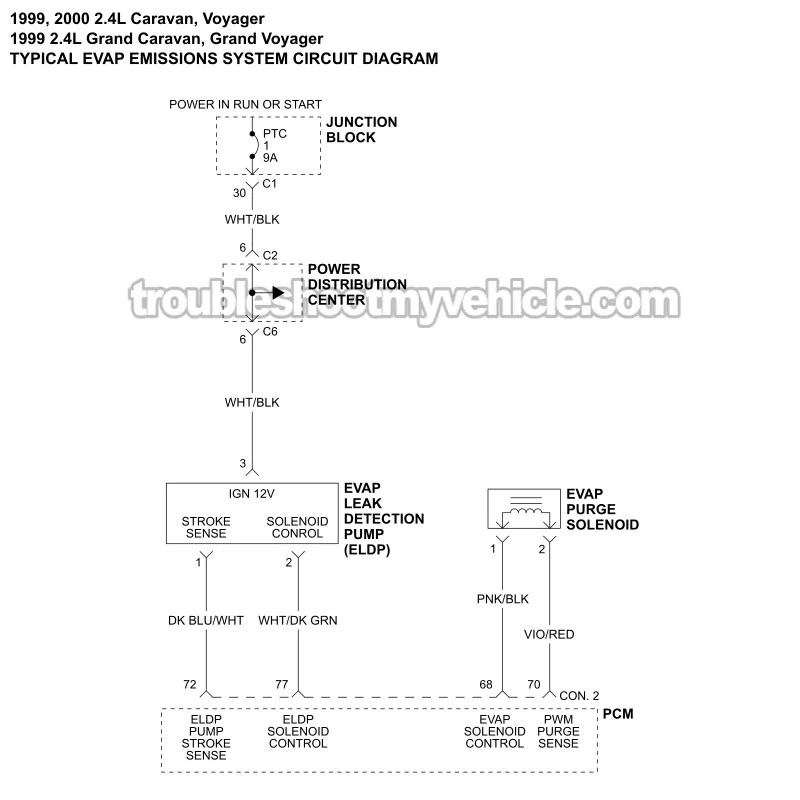

This typical circuit diagram includes the following circuits:

• EVAP purge solenoid.
• EVAP leak detection pump (ELDP).

EVAP System Wiring Diagrams
