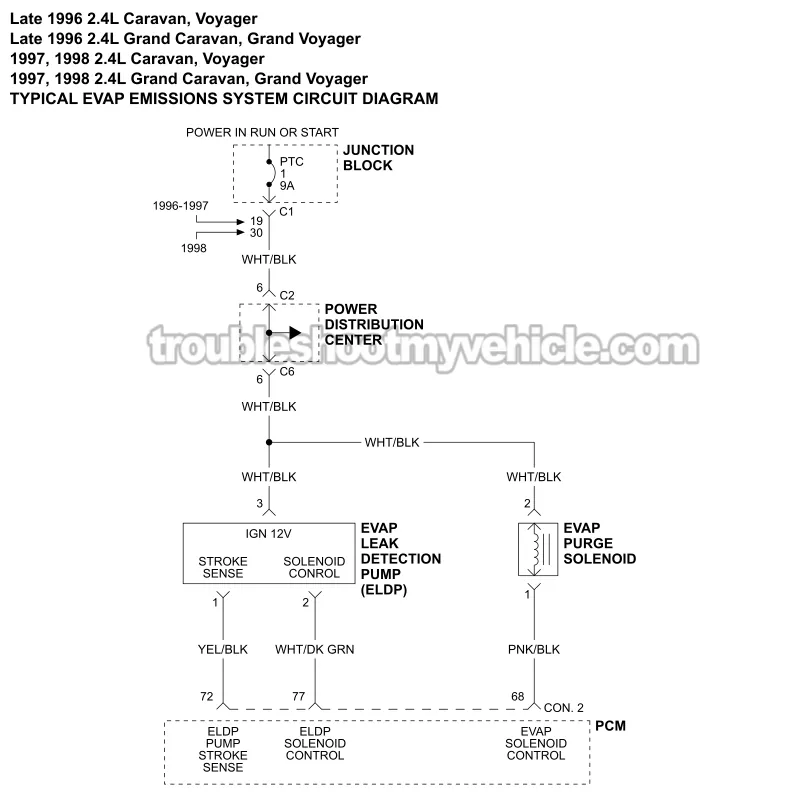

EVAP System Wiring Diagram (1996-1998 2.4L Chrysler, Dodge, And Plymouth Minivan)

APPLIES TO: This simplified EVAP Emissions system wiring diagram applies to the following vehicles:

• 2.4L Dodge Caravan: Late 1996, 1997, 1998.
• 2.4L Dodge Grand Caravan: Late 1996, 1997, 1998.
• 2.4L Plymouth Voyager: Late 1996, 1997, 1998.
• 2.4L Plymouth Grand Voyager: Late 1996, 1997, 1998.

This typical circuit diagram includes the following circuits:

• EVAP purge solenoid.
• EVAP leak detection pump (ELDP).
