A DTC P0141 will illuminate the check engine light on your 4.2L V6 equipped Ford E150 (E250) van when a malfunction occurs in the heater circuit of the upstream oxygen sensor on bank 2 (HO2S B2S1). But what does that mean and more importantly, how do you solve it?
In this guide, I'll explain what diagnostic trouble code (DTC) P0141 means and the most common solutions to resolve it.
Let's get started!
Contents of this tutorial:
- What Does Trouble Code P0141 Mean?
- What Causes Trouble Codes P0141?
- What Does The O2 Sensor Heater Do?
- How To Resolve Trouble Code P0141.
- Where To Buy The O2 Sensor And Save.
- TEST 1: Making Sure The Heater Element Is Getting 12 Volts.
- TEST 2: Making Sure The Heater Element Is Getting Ground.
- TEST 3: Testing The Heater Element's Resistance.
- More 4.2L Ford E150 And E250 Test Tutorials.
APPLIES TO: This tutorial applies to the following vehicles:
- 4.2L V6 Ford E150: 1997, 1998, 1999, 2000.
- 4.2L V6 Ford E250: 1997, 1998, 1999, 2000.
WIRING DIAGRAM: The following wiring diagram may come in handy:
NOTE: The following tutorial will help you troubleshoot DTC P0135:
What Does Trouble Code P0141 Mean?
As I mentioned at the beginning, a DTC P0141 signals an issue with the heater circuit in the front oxygen (O2) sensor for bank 2 of your van's 4.2L V6 engine. Let's take a deeper look:
P0141: Heater Circuit Malfunction (Bank 2, Sensor 1)
- Explanation: This DTC is letting you know that the heater element of the Bank 2 Sensor 1 oxygen sensor isn't turning on. This could be happening because the heater element within the O2 sensor has failed, or isn't getting power (12 Volts) or its activation signal.

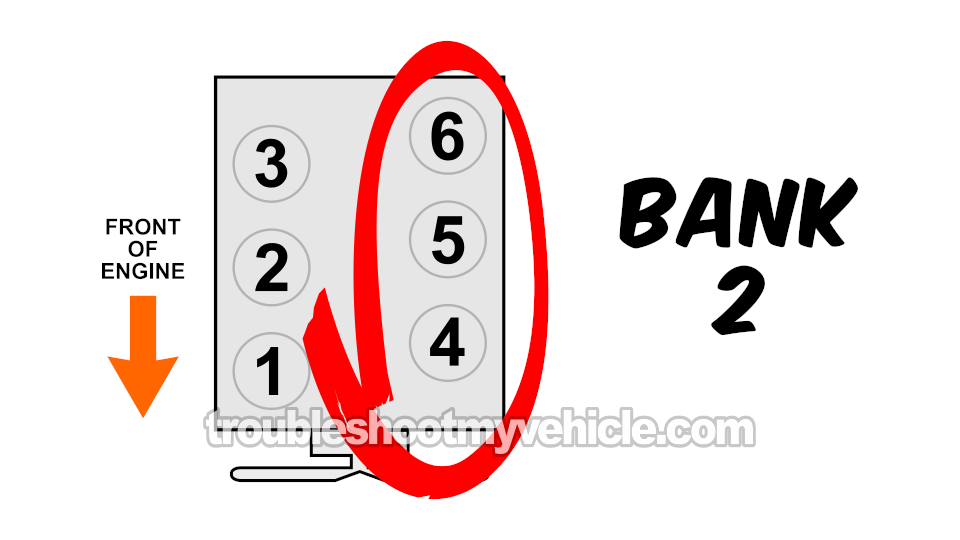

- Location: This oxygen sensor is installed on the exhaust manifold that connects to the engine bank that houses cylinders 4, 5, and 6 (see illustration above). This engine bank is located on the driver side of the van.
This O2 sensor monitors the oxygen levels in the exhaust gases before they enter the catalytic converter, and sends this feedback to the powertrain control module (PCM). With this info, the PCM can fine-tune the air/fuel mixture for the three cylinders that make up Bank 2. - Other Designations: This O2 sensor goes by different names. Here are the most common ones you'll come across:
- HO2 21 -Heated Oxygen Sensor Bank 2, Sensor 1.
- Upstream left Oxygen Sensor.
- Driver Side Front Oxygen Sensor.
- Left Front O2 Sensor.
- Bank 2 Pre-Catalytic Converter Oxygen Sensor.
- Possible Causes:
- Faulty heater element within the oxygen sensor.
- Damaged wiring or connector to the sensor.
- PCM malfunction (less common).
What Causes Trouble Codes P0141?
Quite a few issues can trigger a diagnostic trouble code P0141, but the main one is typically that the heater element inside the O2 sensor fails. Other issues that can trigger the code to illuminate the check engine light are open or short-circuits in the sensor's wiring.
Here's a more detailed look into the issues that can cause a P0141 DTC:
- Heater Element Failure: The heating element (within the O2 sensor) will eventually burn out due to the extreme temperatures it has to produce and maintain as the engine runs.
- Wiring Problems: The O2 sensor's wires are exposed to heat, vibration, and other environmental factors that can cause them to become frayed, corroded, or damaged, leading to open or short-circuit problems in the heater circuit. The most common cause of a wiring issue is the sensor's wiring touching the hot exhaust pipe or other components, causing a 'short-circuit to Ground' problem.
- PCM malfunction: The PCM is responsible for activating the heater element of the oxygen sensor. While very rare, it's possible for the PCM to malfunction and not be able to activate the oxygen sensor heater.
What Does The O2 Sensor Heater Do?
Your Ford E150 or E250's 4.2L V6 engine is outfitted with four oxygen sensors. Two of those O2 sensors provide the Powertrain Control Module (PCM) essential feedback on the accuracy of its air-fuel mixture adjustments. The other two, the PCM uses to monitor the efficiency of the catalytic converters. But, there's a catch —these O2 sensors need to reach a temperature between 600 to 800 °F to function.
When you initially start your van, the O2 sensors aren't yet hot enough to function. If they respond at all, they'll respond slowly to the PCM's air/fuel mixture adjustments. This forces the PCM to use predefined fuel maps stored in its programming and inputs from other sensors, such as the mass airflow (MAF) sensor, to manage the air-fuel mixture and keep the engine performing at its best until the sensor's reach their operating temperature.
As the engine runs and the O2 sensors achieve their normal operating temperature, they begin to provide precise measurements on the oxygen content in the exhaust gases to the PCM. The PCM can now begin to adjust the air-fuel mixture dynamically for each bank of cylinders, which improves fuel efficiency (gas mileage) and emission control.
Despite being subjected to the intense heat from the exhaust gases, this alone isn't sufficient to consistently bring the oxygen sensors to their operating temperature. This is particularly true when the engine is idling or operating in low-load conditions (like coasting), where the exhaust gases are not hot enough to keep the O2 sensors at their necessary high operating temperature.
The only to ensure consistent and rapid heating of the O2 sensors, regardless of engine conditions, is to equip them with internal heaters. These heaters, activated by the PCM during engine start-up, swiftly heat up the sensors.
Eventually, the heating elements in the oxygen sensors degrade due to the extreme temperatures they're creating and are exposed to, leading to issues like the P0141 DTC you're currently researching.
How To Resolve Trouble Code P0141
The top fix for the DTC P0141 is to simply replace the oxygen sensor. Here are three key reasons why this is often the common approach to resolving this DTC:
- O2 Sensor Is Easy To Replace: Replacing the O2 sensor is generally a pretty simple process. You don't need any expensive diagnostic tools or specialized expertise —just an O2 sensor socket or wrench. For most folks, this is the fastest and least labor-intensive solution.
- The O2 Sensor Is Not Expensive: The O2 sensors for the 1997-2000 E-Series vans don't cost an 'arm and a leg', their price hovers around $30 and $50. This makes outright replacement a popular option for resolving this issue.
- No Diagnostic Experience: Diagnosing the heater circuit problem can be time-consuming and it might require a high-end scan tool (the ones that run $3,000+), as well as access to professional diagnostic data. For many vehicle owners (even some repair shops), it makes more sense to replace the sensor right off the bat. The rationale is that it's fairly uncommon for there to be any other underlying problems, like electrical faults in the engine wiring harness wires that connect to the O2 sensor.
If you want to skip testing the O2 sensor's heating element and just replace the sensor from the get-go, I want to recommend that you:
- Inspect Wiring Harness: Visually inspect the oxygen sensor wiring harness wires. Look for any signs of damage, such as melted insulation or wires that are shorted together.
Damaged wiring can cause the engine not to start. This is because the fuse that supplies power to the O2 sensor's heating element also powers the fuel pump, fuel injectors, and ignition coil. A short circuit in the O2 sensor wiring could blow this fuse.
If you find any issues with the wiring, address them before installing a new oxygen sensor.
To see my oxygen sensor recommendations and where to buy them, go here: Where To Buy The O2 Sensor And Save.
Where To Buy The O2 Sensor And Save
NOTE: Not sure if the oxygen sensors listed above fit your particular vehicle? Don't worry, once you get to the site they'll make sure it fits by asking you the specifics of your particular vehicle. If it doesn't fit, they'll find you the right one.
TEST 1: Making Sure The Heater Element Is Getting 12 Volts
The first step in troubleshooting the P0141 DTC is to confirm that the O2 sensor's heating element is receiving 10 to 12 Volts (with the ignition key in the RUN position but with the engine OFF).
The red (RED) wire of the O2 sensor's 4-wire engine wiring harness connector is the one responsible for delivering this voltage to the heater element of the O2 sensor.
NOTE: Make sure the engine is cold before you start any of the O2 sensor heater element tests in this tutorial. If you had the engine running, allow it to cool down completely. The exhaust pipe and O2 sensor remain hot for quite awhile even after you've turned off the engine. This makes it crucial to begin your diagnostics with a cold engine.
Let's get started:
- 1
Disconnect the O2 sensor from its engine wiring harness connector.
- 2
Place your multimeter in Volts DC.
- 3
Connect the black multimeter test lead to the battery negative (-) post.
- 4
Turn the key to the RUN position but don't crank or start the engine.
- 5
With the red multimeter test lead, probe the male terminal of the connector that connects to the RED wire of the O2 sensor's 4-wire connector.
- 6
Your multimeter should register 10 to 12 Volts DC.
Let's interpret your test result:
CASE 1: The RED wire is delivering 10 to 12 Volts. This is the correct and expected test result.
Your next step is check that the heater element is getting Ground. Go to: TEST 2: Making Sure The Heater Element Is Getting Ground.
CASE 2: The RED wire IS NOT delivering 10 to 12 Volts. Without this voltage, the heater element will not function.
If the engine in your van starts, the most likely cause of this missing voltage is an open-circuit problem between the engine wiring harness O2 sensor connector and the PCM Power Relay.
