APPLIES TO: This circuit wiring diagram applies to the following vehicles:
- 4.2L V6 Ford E150: 1997, 1998, 1999, 2000.
- 4.2L V6 Ford E250: 1997, 1998, 1999, 2000.

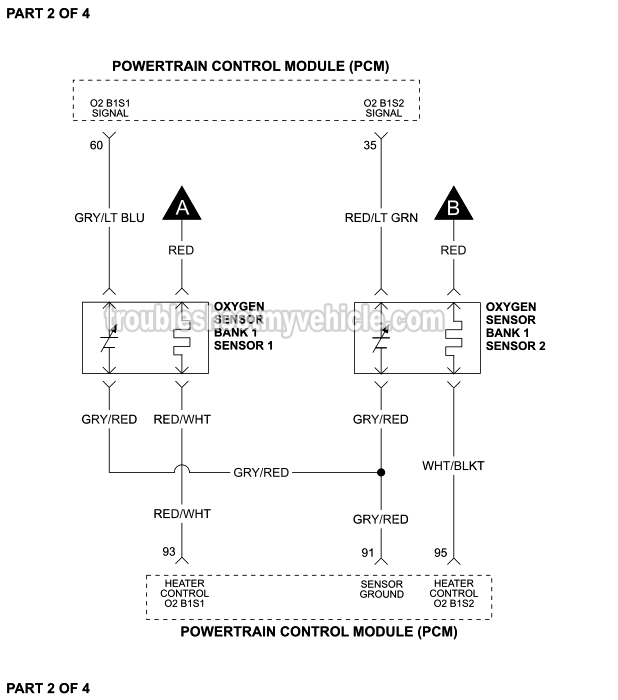

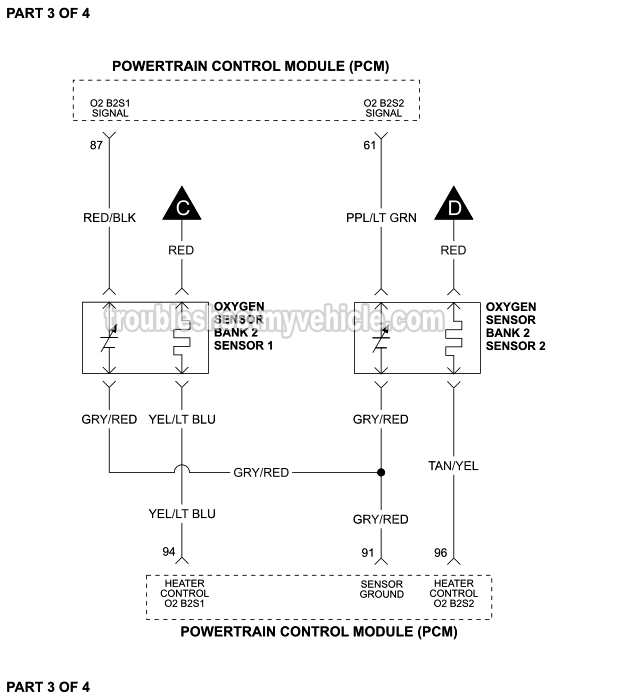

NOTE: This wiring diagrams includes the following circuit components:
- PCM Power Rely
- Oxygen Sensor B1S1
- Oxygen Sensor B1S2
- Oxygen Sensor B2S1
- Oxygen Sensor B2S2
The following wiring diagrams for the V8 Ford E-Series vans may come in handy:
- Oxygen Sensor Circuit Wiring Diagram (1997-1999 4.6L V8 Ford E150, E250)
- Oxygen Sensor Circuit Wiring Diagram (1997-1999 5.4L V8 Ford E150, E250, E350)
F-SERIES PICKUPS: The wiring diagram for the 1999 4.2L V6 Ford F150/F250 pickups can be found here:
- Oxygen Sensors Circuit Wiring Diagram (1997, 1998 4.2L V6 Ford F150, F250) (at: easyautodiagnostics.com)
- Oxygen Sensors Circuit Wiring Diagram (1999 4.2L V6 Ford F150, F250) (at: easyautodiagnostics.com)
