Ignition System Wiring Diagram (1999-2001 3.0L V6 Toyota Camry)

  • By: Abraham Torres-Arredondo
  • Created: 31 December 2024
  • Updated: 12 January 2025
  • Articl Id: 1456

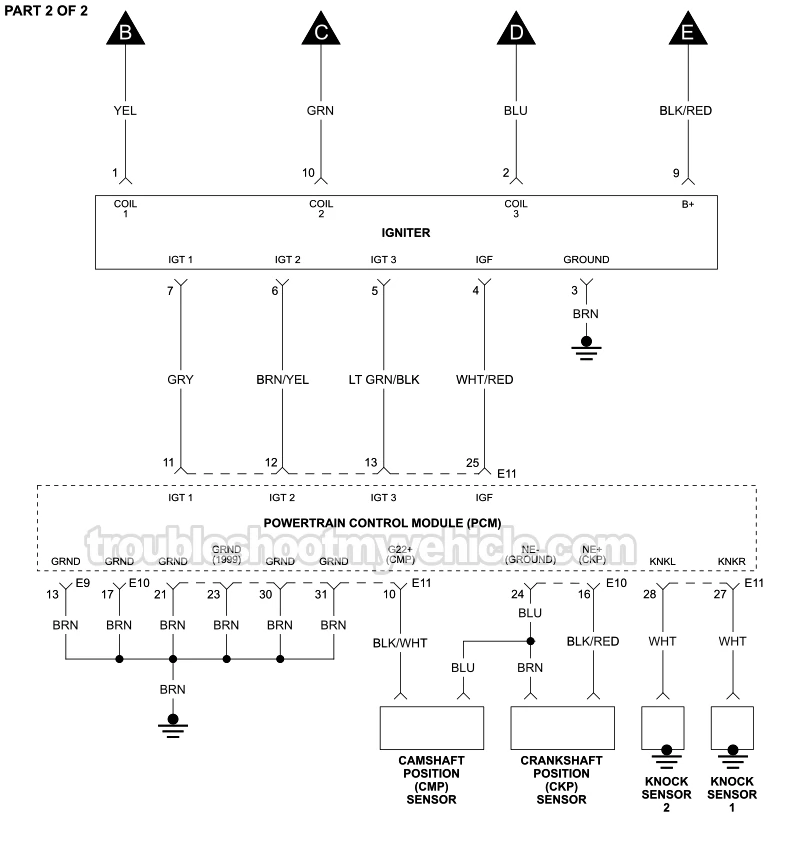

PART 2 of 1: Ignition System Circuit Wiring Diagram (1999, 2000, 2001 3.0L V6 Toyota Camry) PART 2 of 2: Ignition System Circuit Wiring Diagram (1999, 2000, 2001 3.0L V6 Toyota Camry)

APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:

  • 3.0L V6 Toyota Camry: 1999, 2000, 2001.

This ignition system wiring diagram includes the following components:

  • Ignition Coils.
  • Igniter.
  • Crankshaft Position (CKP) Sensor.
  • Camshaft Position (CMP) Sensor.

Ignition System Tests:

Wiring Diagrams: You can find the 1994 3.0L V6 Toyota Camry ignition system wiring diagram here:

More 3.0L Toyota Camry Tutorials

You can find a complete list of 3.0L Toyota Camry tutorials and wiring diagrams in this index:

Here's a sample of the tutorials you'll find there:
