Ignition System Wiring Diagram (1995 3.0L V6 Toyota Camry)

APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:

• 3.0L V6 Toyota Camry: 1995.

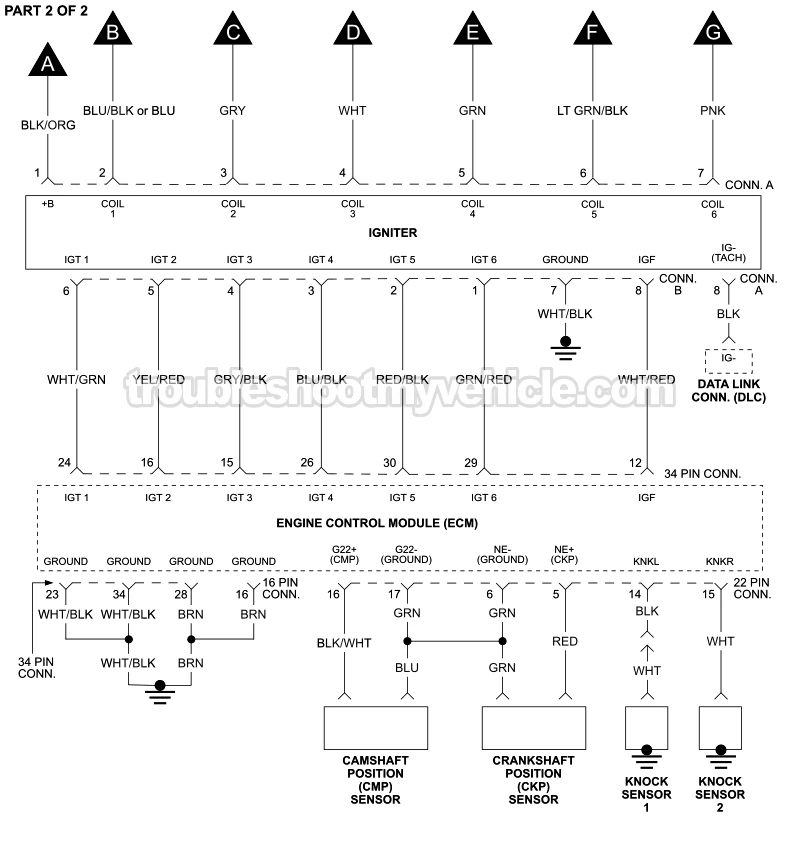

This ignition system wiring diagram includes the following components:

• Coil-On-Plug (COP) Ignition Coils.
• Igniter.
• Crankshaft Position (CKP) Sensor.
• Camshaft Position (CMP) Sensor.

Ignition System Tests:

• How To Test The Ignition Coils (1994-1995 3.0L V6 Toyota Camry).
• How To Test The Crankshaft Position (CKP) Sensor (1994-2006 3.0L V6 Toyota Camry.
• How To Test The Camshaft Position (CMP) Sensor (1994-2003 3.0L V6 Toyota Camry.

Wiring Diagrams: You can find the 1994 3.0L V6 Toyota Camry ignition system wiring diagram here:

• Ignition System Wiring Diagram (1994 3.0L V6 Toyota Camry).
