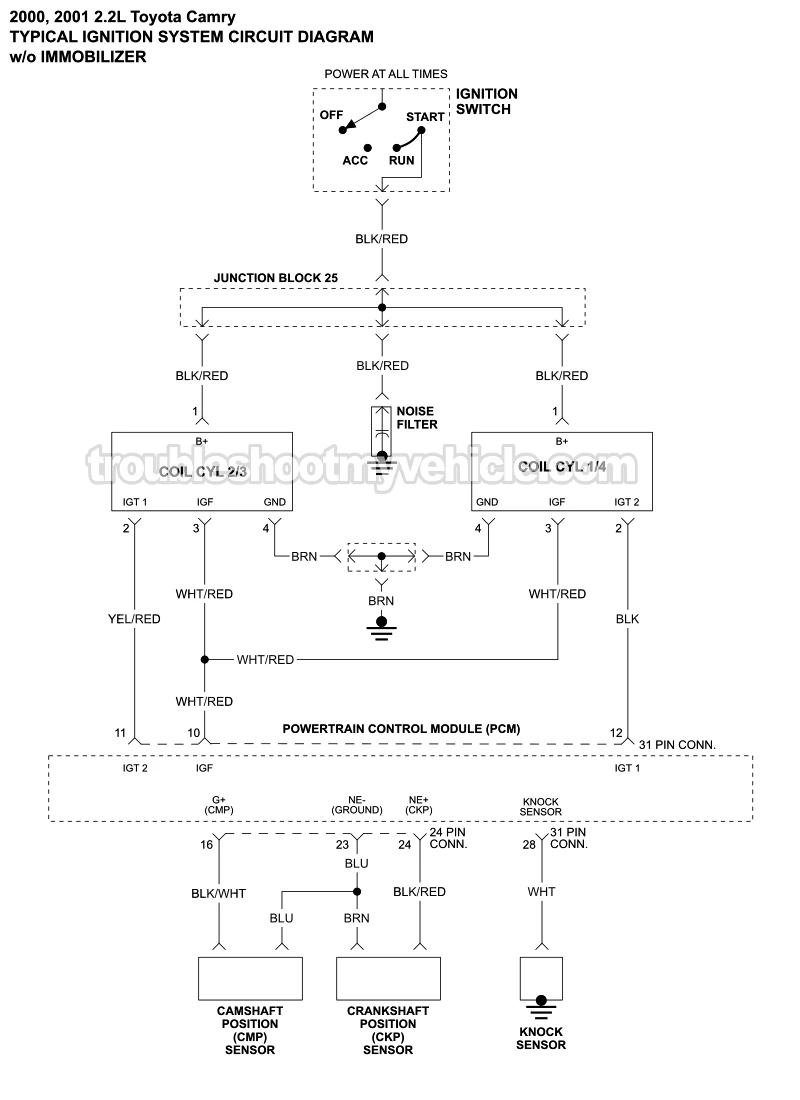

Ignition System Circuit Wiring Diagram (2000-2001 2.2L Toyota Camry)

APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:

• 2.2L Toyota Camry: 2000, 2001.

Ignition System Tests: The following tutorials explain how to test the ignition coils, CKP sensor, and the CMP sensor:

• How To Test The Ignition Coils (1997-2001 2.2L Toyota Camry).
• How To Test The Crankshaft Position (CKP) Sensor (1997-2001 2.2L Toyota Camry).
• How To Test The Camshaft Position (CMP) Sensor (1997-2001 2.2L Toyota Camry).

Ignition System Wiring Diagrams:

• Ignition System Circuit Wiring Diagram (1997 2.2L Toyota Camry).
• Ignition System Circuit Wiring Diagram (1998-1999 2.2L Toyota Camry).

More 2.2L Toyota Camry Tutorials

You can find a complete list of 2.2L Toyota Camry tutorials and wiring diagrams in this index:

• 2.2L Toyota Camry And Celica Index of Articles.
