Fuel Injector Circuit Wiring Diagram (2005-2006 1.8L Toyota Corolla)

DIAGRAM 1: 1ZZ-FE Engine

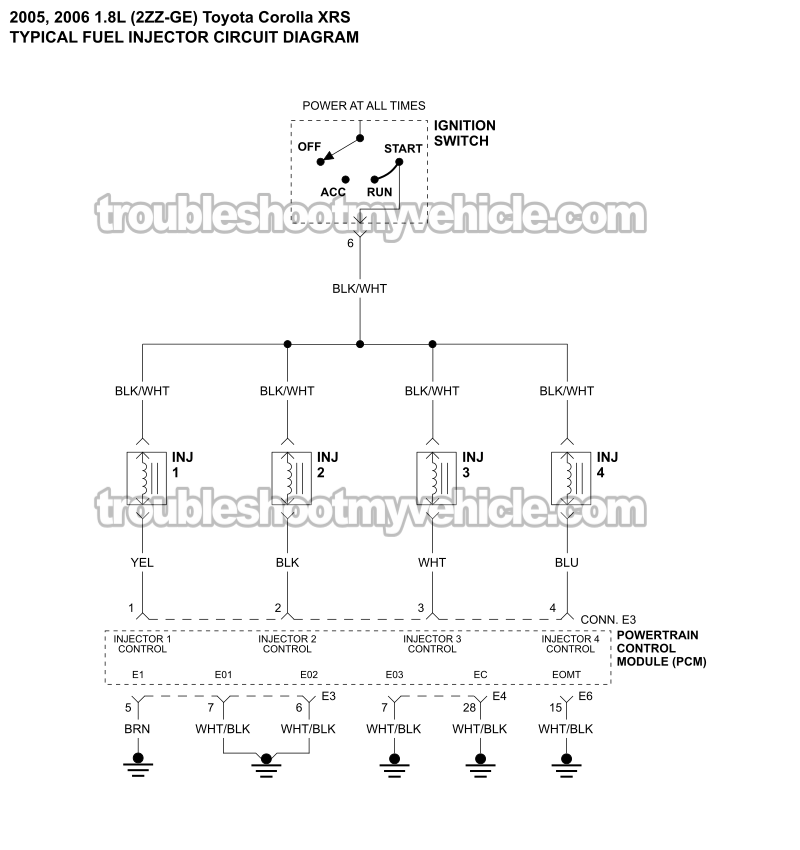

DIAGRAM 2: 2ZZ-GE Engine (Corolla XRS)

APPLIES TO: The fuel injector circuit wiring diagrams apply to the following vehicles:

• 1.8L (1ZZ-FE) Toyota Corolla: 2005, 2006.
• 1.8L (2ZZ-GE) Toyota Corolla XRS: 2005, 2006.
