Fuel Injector Circuit Wiring Diagram (2000-2002 1.8L Toyota Corolla)

DIAGRAM 1: Manual And 3 Speed Automatic Transaxle

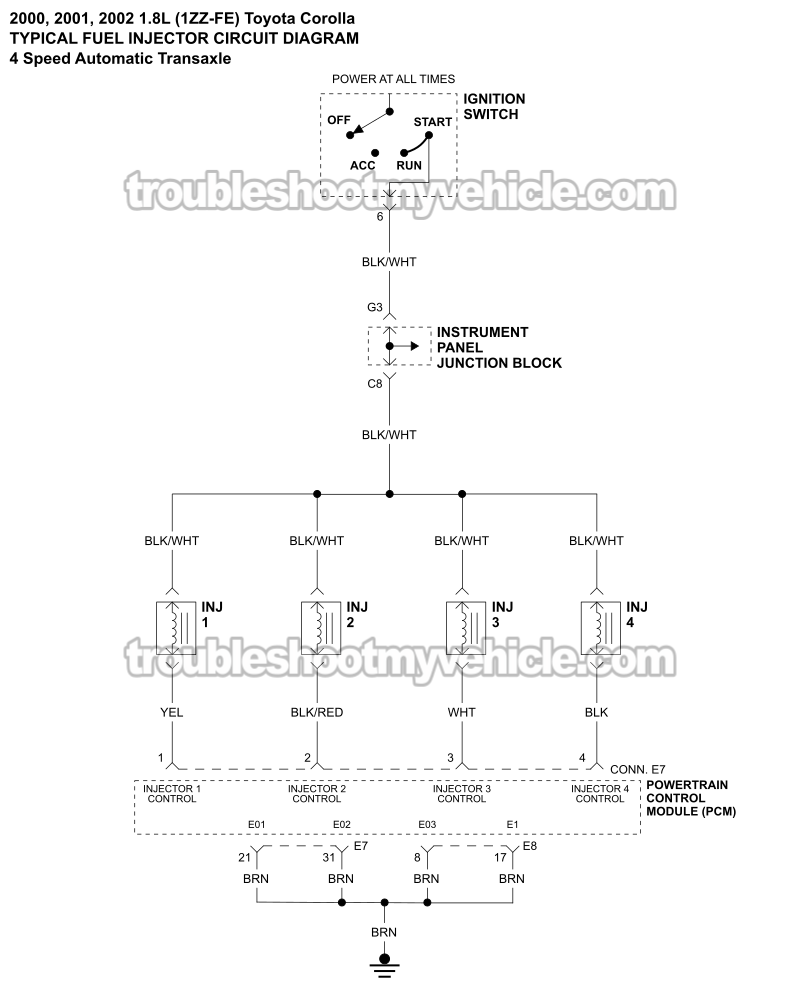

DIAGRAM 2: 4 Speed Automatic Transaxle

APPLIES TO: Both fuel injector circuit wiring diagrams apply to the following vehicles:

• 1.8L (1ZZ-FE) Toyota Corolla: 2000, 2001, 2002.
