MAP Sensor Wiring Diagram (PART 1)
![MAP Sensor Wiring Diagram (1996, 1997 Suzuki Sidekick - Geo Tracker) MAP Sensor Wiring Diagram (1996, 1997 Suzuki Sidekick - Geo Tracker)](/images/articles-600-699/600/605/image_1.gif)
NOTE: The manifold absolute pressure (MAP) sensor wiring diagrams and info in this page apply only to 1996, 1997 Suzuki Sidekick - Geo Tracker.

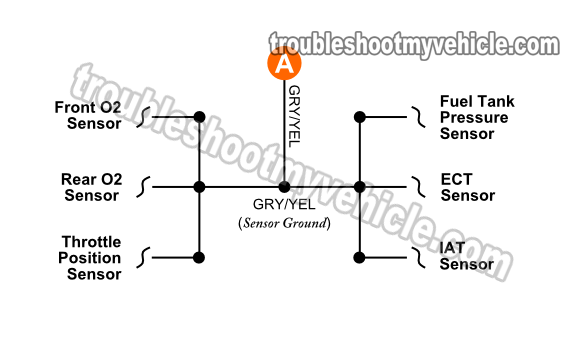

MAP Sensor Wiring Diagram (PART 2)
![MAP Sensor Wiring Diagram (1996, 1997 Suzuki Sidekick - Geo Tracker) MAP Sensor Wiring Diagram (1996, 1997 Suzuki Sidekick - Geo Tracker)](/images/articles-600-699/600/605/image_2.gif)
More 1.6L Sidekick Tutorials
You can find a complete list of tutorials in this index: Suzuki 1.6L Index Of Articles.
Here's a small sample of the 1.6L Suzuki Sidekick tutorials you'll find in the index:
