Ignition System Wiring Diagram (1993-1998 3.0L Nissan Quest)

  • By: Abraham Torres-Arredondo
  • Created: 05 June 2019
  • Updated: 19 December 2022
  • Articl Id: 841
Page 1 of 3

DIAGRAM 1: 1993, 1995, 1996 3.0L Nissan Quest

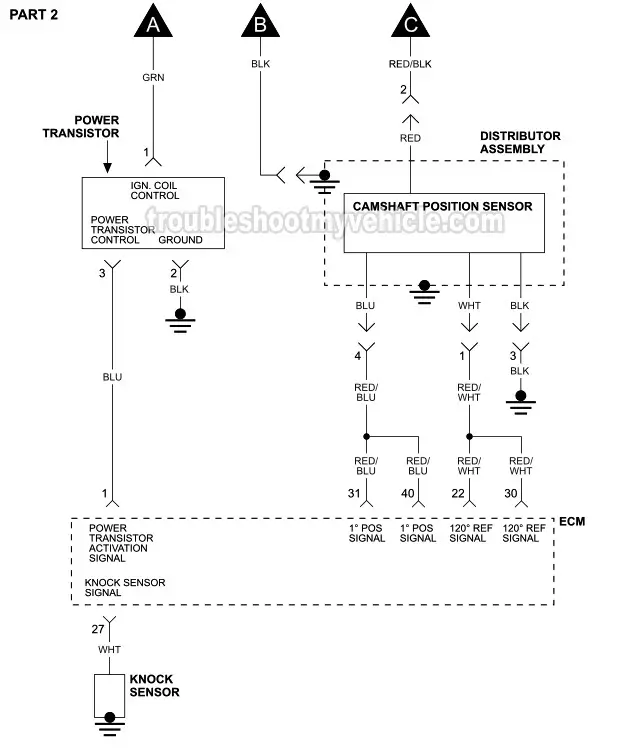

Part 1 -Ignition System Wiring Diagram (1993, 1994, 1995 3.0L V6 Nissan Quest And Mercury Villager) Part 2 -Ignition System Wiring Diagram (1993, 1994, 1995 3.0L V6 Nissan Quest And Mercury Villager)

The above typical ignition system wiring diagram applies only to the 1993, 1994, 1995 3.0L Nissan Quest and Mercury Villager. It includes the following circuits: ignition coil, power transistor (ignition control module), and camshaft position sensor.

You can find the camshaft position sensor test explained in detail here: How To Test The Camshaft Position Sensor (1993-1998 3.0L Nissan Quest).

You can find the ignition coil and power transistor tests explained in detail here: How To Test The Ignition Coil And Power Transistor (1993-1998 3.0L Nissan Quest).

  2. Applies To:

Nissan Vehicles:

  • Quest 3.0L
    • 1993, 1994, 1995, 1996, 1997, 1998

Mercury Vehicles:

  • Villager 3.0L
    • 1993, 1994, 1995, 1996, 1997, 1998
