How To Test The Starter Motor (Nissan 2.4L -Frontier, Xterra)

STARTER TEST 3: Voltage Drop Testing The Battery (+) Cable

How To Test The Starter Motor (Nissan 2.4L -Frontier, Xterra) How To Test The Starter Motor (Nissan 2.4L -Frontier, Xterra)

In this starter motor test step, you're gonna' verify that the battery positive (+) cable that attaches to the large stud on the starter solenoid is supplying all of the battery's power to the starter motor.

Here's why: Unseen corrosion somewhere on the battery positive (+) cable, either at the end that connects to the battery positive post or on the end that connects to the starter solenoid could be causing a voltage drop.

In this case, a voltage drop is simply a condition in which unseen corrosion blocks a lot of the battery power from reaching the starter motor. When this happens, the starter motor will not be able to crank the engine in your Nissan 2.4L Frontier or 2.4L Xterra, even though the battery is in a fully charged state.

  1. 1

    Place your multimeter in Volts DC mode. Attach the red multimeter test lead to the center of the positive battery terminal. If the positive battery post isn't clean, then clean a spot right on the top of it. It's important that the multimeter test lead make contact right in the center of the positive battery post.

    You may need two helpers for this test step, since someone will have to hold the red multimeter test lead onto the battery positive (+) terminal and someone else will need to crank the vehicle while you perform the next step.

  2. 2

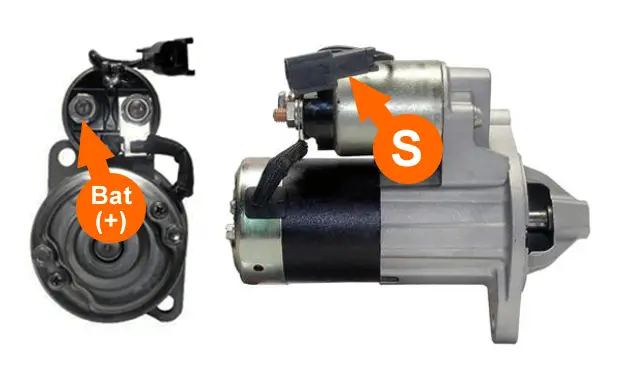

    With the black multimeter test lead, touch the center of the starter solenoid stud to which the big battery cable attaches to. You'll maintain the black multimeter test lead in this position throughout the next step.

  3. 3

    Now, have a helper turn the key to crank the engine from inside the vehicle. This is important, since a voltage drop test has to be done while the component in question is working (or trying to work).

  4. 4

    OK, if all is good (no voltage drop), your multimeter will register 0 Volts (0.5 Volts is still 0 Volts). If there's a voltage drop, your multimeter will register voltage (usually above 7 Volts DC.)

Let's take a look at what your results mean:

CASE 1: Your multimeter registered 0 Volts (no voltage drop). This result indicates that the starter motor is receiving all of the battery voltage and Amperage it needs to crank the vehicle.

This also means that the starter motor is bad, and here's why:

  1. In STARTER TEST 1 you confirmed that the starter motor doesn't work when you apply power to the S terminal wire of the starter motor solenoid.
  2. STARTER TEST 2 you confirmed that the starter motor is receiving the crank signal.
  3. In this test step you have confirmed that no voltage drop exists on the battery positive cable.

These 3 test results, taken together, indicate that the starter motor is bad. Replacing the starter motor should solve your 'no-crank' condition.

I'm going to make two more recommendations to you. 1.) Before removing the starter motor, manually turn the engine using a 1/2 ratchet and the appropriate socket on the crankshaft pulley. This is just to make sure the engine or the A/C Compressor have not locked up and causing the no-crank condition and 2.) Bench test the starter motor after removing it. This is a super easy test to do and you can find this article by clicking here: How To Bench Test A Starter Motor (Step By Step) (at:

CASE 2: Your multimeter registered 5 Volts or more. This result tells you that a voltage drop does exist and this is not a good result.

The good news is that this can easily be corrected, since a voltage drop is always caused by some sort of corrosion issue on the battery positive cable or terminals or the battery positive post.

The solution is to thoroughly clean the battery positive post and the battery positive (+) terminal (both the end that attaches to the battery positive post and the end the connects to the starter motor solenoid).

After cleaning, try cranking the engine. If it cranks and starts, no further testing is required.
